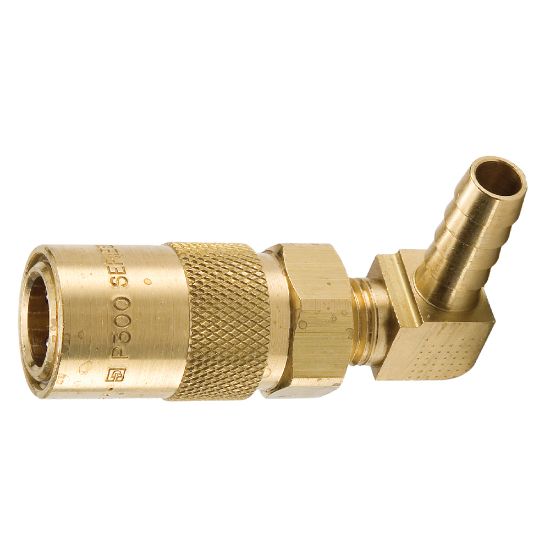

Parker PC214 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC214

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.02670863309352518 lb	Maximum Operating Pressure	200 psi
Division	Quick Coupling Division	Plating Type	na
Minimum Operating Temperature	-20 °F	Maximum Operating Temperature	400 °F
Application	Mold Coolant	Product Type	Manual Connect
Hex Size	0.63 inch	Seal Material	Silicone
Flow Rate	3	Connection Type	Hose barb, 90 degree
Body Material	BRASS	Connection Hose I.D. (inch)	1/4
Valve Style	Unvalved	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
