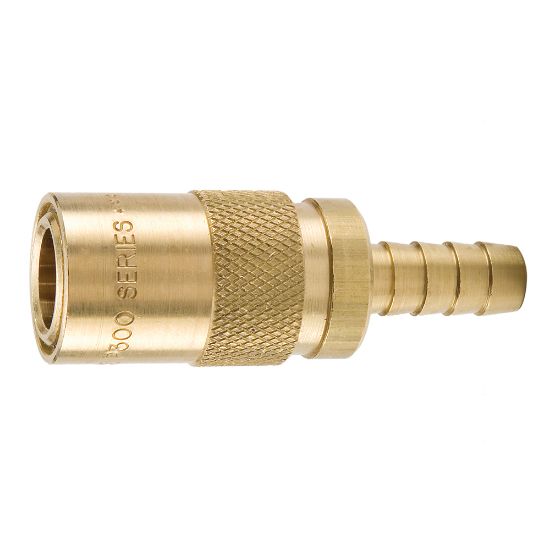

Parker PC205 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC205

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.012606115107913667 lb	Plating Type	na
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-20 °F	Application	Mold Coolant
Seal Material	Silicone	Product Type	Manual Connect
Hex Size	0.63 inch	Maximum Operating Pressure	200 psi
Body Size (inch)	1/4	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Connection Hose I.D. (inch)	5/16
Flow Rate	3	Body Material	BRASS
Connection Type	Hose barb	Valve Style	Unvalved
