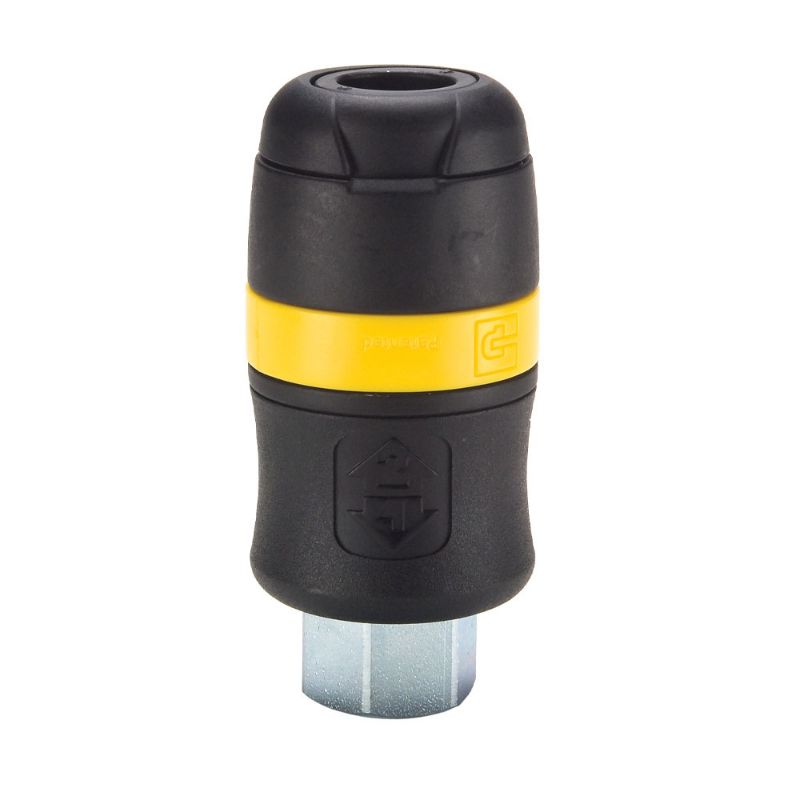

Parker PBS-371-6FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Quote Required
Partner Available:	9 In Stock

Brand Parker

Part No. PBS-371-6FP

$66.34

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Application	Air	Dimensional Weight	0.14388489208633093 lb
Plating Type	Galvanized Steel Port Ends	Sleeve Type	Push-to-Connect
Maximum Operating Temperature	160 °F	Coupling Half	Coupler
Specifications Met	ISO 4414 controlled pressure release	Media	Compressed Air
Valve Type	Tubular	Maximum Operating Pressure	300 psi
Body Material	Polyamide	Special Option	Exhaust - Venting
Seal Material	Nitrile	Lock Type	Polyacetate Locking Fingers
Minimum Operating Temperature	0 °F	Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Connection Type	Female, NPTF	Connection Thread Size	3/8"-18
Thread Style	Female	Body Size	3/8"
