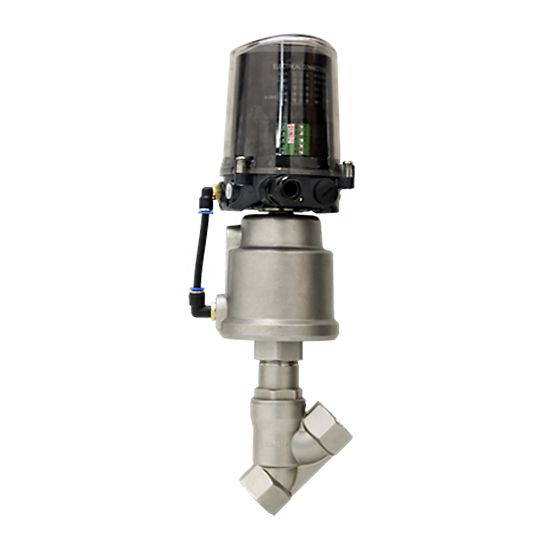

Parker PA32SAN7R100A-PR - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PA32SAN7R100A-PR

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid Control Division
Function	Normally Closed	Seal Material	PTFE
Connection Type	NPT	Maximum Operating Temperature	140 °F
Body Material	316L Stainless Steel	Connection Size	1-1/4 inch
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Maximum Operating Pressure	232.0 psi
For Fluid Type	Inert Gas	Technology	Process Control
Product Type	Angle Valve	Division	Fluid Control Division
Signal Input	0/4 - 20 mA	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Product Style	Proportional Control	Actuation Type	Air Pilot
Maximum Pilot Pressure	145 psi	Materials of Construction	Aluminium (Actuator Housing)
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
Input Supply Voltage	24 VDC	Orifice Size	1.22
Actuator Size	100 mm	Flow Coefficient	28 Cv
Minimum Pilot Pressure	65.0 psi	Port Size	1-1/4 inch
Function	2-Way	Body Material	316L Stainless Steel
Configuration	Normally Closed - Under Seat Anti-Waterhammer	Maximum Steam Pressure	130 psi
Actuator Housing Material	Aluminium	Maximum Operating Pressure	232 psi
Minimum Pilot Pressure	65.0 psi
