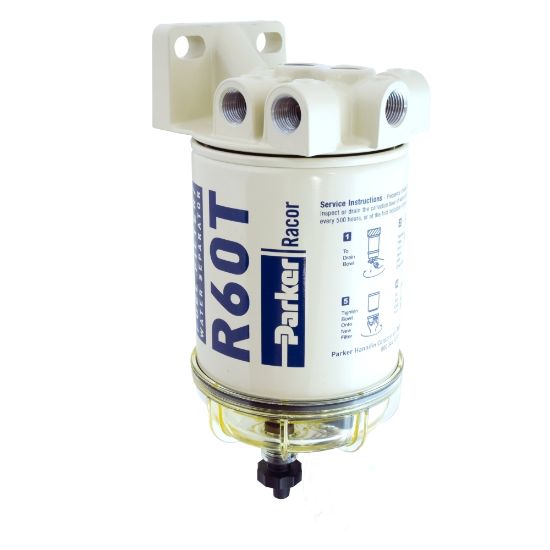

Parker 660R10 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 660R10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 250 °F	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
Maximum Fluid Temperature	88.0 °C	Width	4.5 inch
Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron	Depth	114.0 mm
Height	259.0 mm	Weight	2.6 lb
Clean Pressure Drop	0.34 kPa	Location	North America and EMEA regions
Micron Rating	98% @ 10 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Integral Primer Pump Included	No Pump	Flow Rate	60 gph (227 lph)
Port Size	3/8"-18 NPTF (SAE J476)	Product Series	Diesel Spin-on 600

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)
