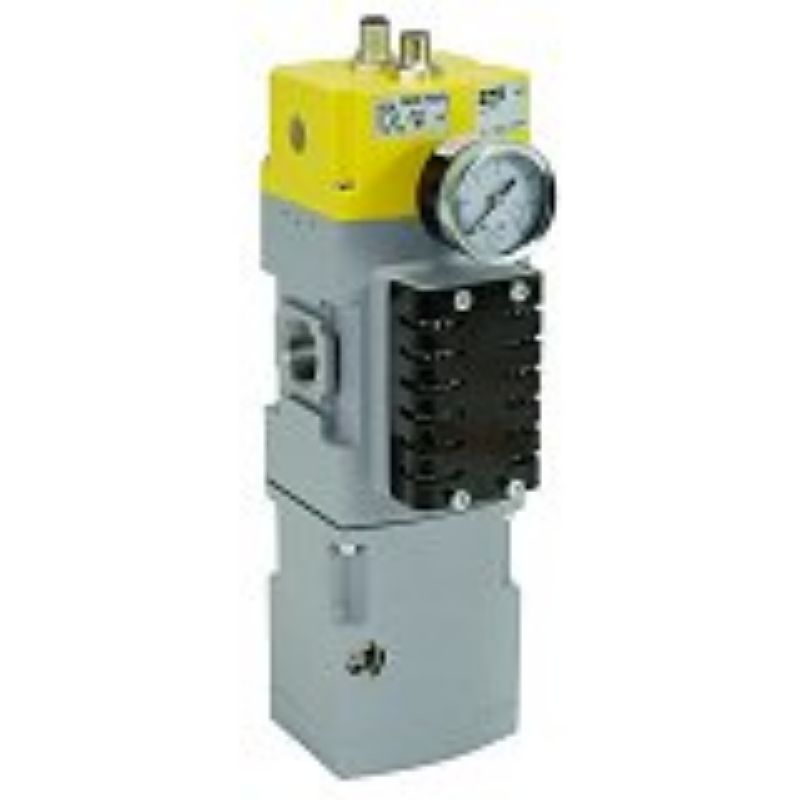

Parker P33TB96AAEG - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33TB96AAEG

$1,186.20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Industry	General Industry
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Operating Temperature	4 to 50
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Input Voltage	24
Division	Pneumatic Division	Flow Rate	≤ 265
Maximum Operating Pressure	150	Technology	Pneumatics
Width	8	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Minimum Operating Pressure	10	Port Size	3/4
Function	3/2 Normally-Closed	Seal Material	Nitrile Butadiene Rubber (NBR)
Brand	Parker	Port Type	NPT
Length	10.93	Body Material	Cast Aluminum
Product Style	Electro-Pneumatic (Solenoid Actuated)	Height	26.19
Electrical Connection	M12 (x2)	Product Type	Safety Exhaust Valve
Weight	2.9	Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3
Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3	Pressure Gauge	[EG] - Standard Dial Gauge
Options	Black Grill	Port Size	[6] - 3/4 inch
Product Style	[P33T] - With Soft Start	Port Type	[B9] - NPTF
