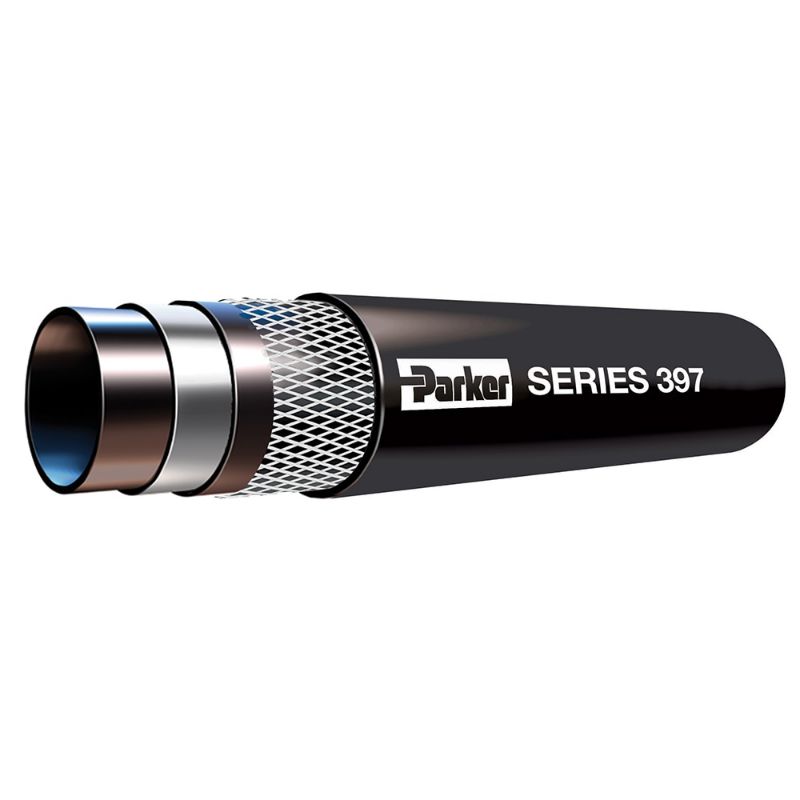

Picture of Parker 39703 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 39703 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

Super-Flex Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 397
Availability:
49 In Stock
Richmond, VA42
Ashland, VA7
Partner Available:1319 In Stock
Brand Parker
Part No. 39703
$2.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTDivisionHose Products Division
Maximum Operating Temperature125 °CMaximum Operating Pressure6.9 bar
Cover StructureSmoothPackage TypeReel
Vacuum Pressure Rating24 Inch-HgMinimum Operating Temperature-30 °C
Compatible Fitting55 SeriesLength per Package250 ft
ApplicationBoatTube MaterialNitrile and Translucent Thermoplastic Barrier
MediaFuels (Diesel, Gasoline) - Check fuel type with our catalogue chart.Weight0.08 kg/m
Cover MaterialChlorinated Polyethylene Rubber (CPE)Inside Diameter4.7 mm
Outside Diameter11.1 mmSpecifications MetSAE J30R7 / J30R14, Type 2
Minimum Bend Radius1.3 inchHose Inner Tube MaterialNitrile/Translucent Thermoplastic Barrier
Hose Reinforcement Material1 Braid or Multiple Plies of TextileLength76.2 m Supplied in reels, with max. 3 lengths at least 7.62 m long.
Hose I.D. (inch)3/16Maximum Working Pressure (psi)100
