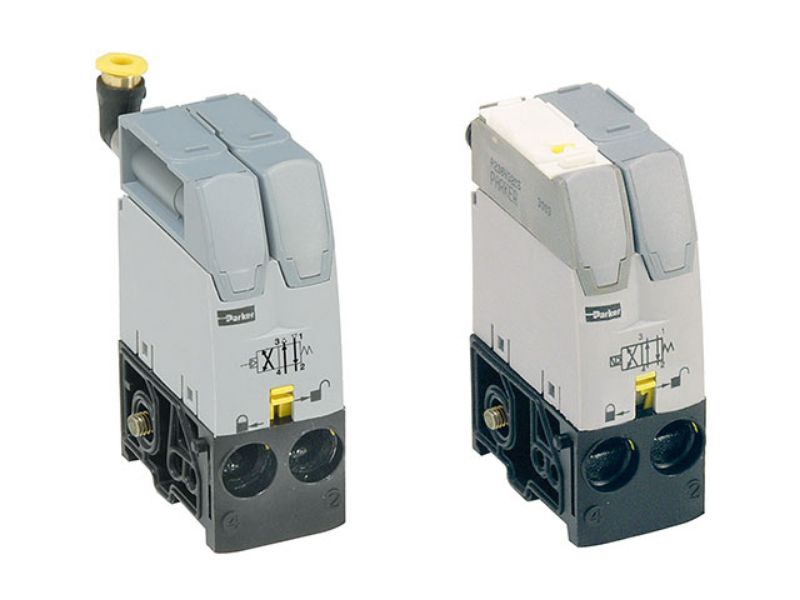

Parker P2M1TJEE2C - Moduflex T Series - Size 1 Valve

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2M1TJEE2C

$139.78

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operator Type	Solenoid
Operator Type Detail	Double	UOM	EA
Override Type	Multi-function	Solenoid Voltage	24 VDC
CV Factor	0.18	Pkg Qty	1
Pilot Supply	Internal	CV Factor	0.18
Parker Division	Pneumatic	Trade Name	Moduflex
Operator Type	Solenoid	Override Type	Multi-function
Pneumatic Valve Type	Manifold Valve	Solenoid Connection	M8
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Parker Group	Automation	Valve Passages	4-way
Valve Positions	2-position	Pilot Supply	Internal
Series Type	T Series - Size 1	Solenoid Voltage	24 VDC
Offset Return Type	Spring Return	Operator Type Detail	Double
Series	Moduflex	Center Condition	Dual Valve w/Exhaust Check
