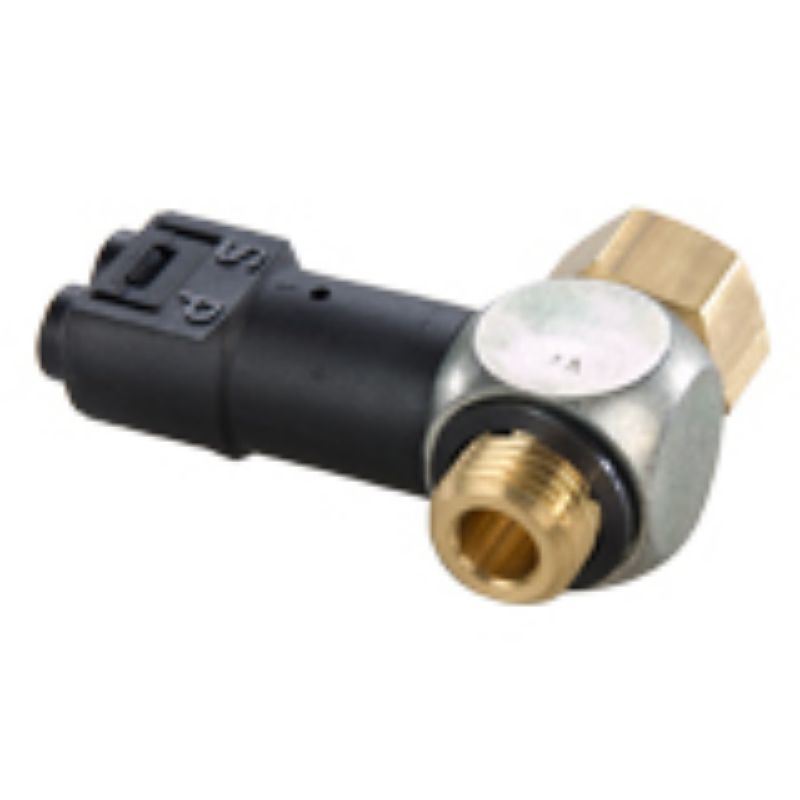

Parker PSBJ731-6G - Threshold Sensor Fittings - Metric

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSBJ731-6G

$97.26

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	5 °F
Maximum Operating Temperature	140 °F	Division	Fluid System Connectors Division
Application	Semiconductor	Bolt Material	Brass
Body Material	Composite	Response Time	3 ms
Maximum Operating Pressure	115 psi	Pilot Line (mm)	4
Style	Male/Female Thread	Connection 1 Thread Size (mm)	3/8
Connection 1 Style	BSPP	Type	Pneumatic - 4mm pilot
Port Size (inch)	3/8	Port Type	BSPP

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
