*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

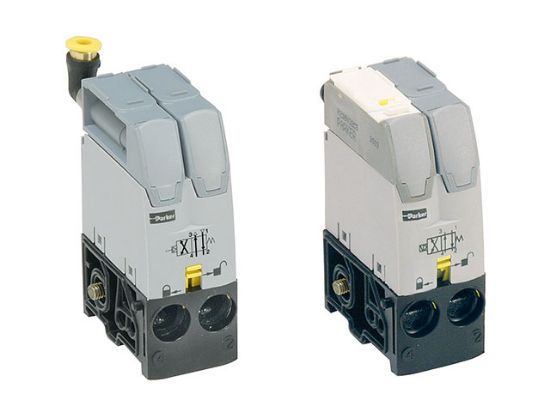

Parker P2M1TCPP - Moduflex T Series - Size 1 Valve

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2M1TCPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operator Type	Air Piloted	Override Type	Multi-function
UOM	EA	Operator Type Detail	Double
Pkg Qty	1	Pilot Supply	Internal
CV Factor	0.22	Operating Temperature	5°F to 140°F (-15°C to 60°C)
Parker Group	Automation	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Center Condition	Dual Valve, NO/NO w/Exhaust Check	Solenoid Connection	M8
Pneumatic Valve Type	Manifold Valve	Override Type	Multi-function
Trade Name	Moduflex	Parker Division	Pneumatic
Offset Return Type	Spring Return	Operator Type Detail	Double
CV Factor	0.22	Series	Moduflex
Valve Positions	2-position	Series Type	T Series - Size 1
Operator Type	Air Piloted	Valve Passages	3-way
Pilot Supply	Internal
