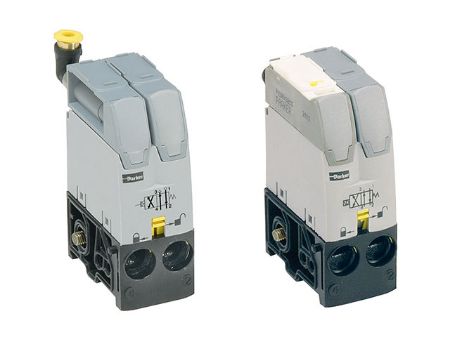

Moduflex T Series - Size 1 Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | CV Factor | Override Type | Operator Type Detail | Operator Type | Pkg Qty | Pilot Supply | Parker Group | Operating Temperature | Supply Pressure Range | Operator Type Detail | Valve Positions | Operator Type | Valve Passages | Series Type | Pilot Supply | CV Factor | Series | Center Condition | Solenoid Connection | Offset Return Type | Pneumatic Valve Type | Parker Division | Trade Name | Override Type | Solenoid Voltage | Solenoid Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P2M1T3PS | Quote Required | $69.89/each | EA | EA | 0.22 | Multi-function | Single | Air Piloted | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Single | 2-position | Air Piloted | 3-way | T Series - Size 1 | Internal | 0.22 | Moduflex | NC w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | ||||
| P2M1T4EE2C | Quote Required | 2 Limited Stock | $101.86/each | EA | EA | 0.32 | Multi-function | Double | Solenoid | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Solenoid | 4-way | T Series - Size 1 | Internal | 0.32 | Moduflex | M8 | Manifold Valve | Pneumatic | Moduflex | Multi-function | 24 VDC | 24 VDC | |||
| P2M1T4ES2C | Quote Required | 2 Limited Stock | $75.05/each | EA | EA | 0.32 | Multi-function | Single | Solenoid | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Single | 2-position | Solenoid | 4-way | T Series - Size 1 | Internal | 0.32 | Moduflex | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | 24 VDC | 24 VDC | ||
| P2M1T4PP | Quote Required | $92.04/each | EA | EA | 0.32 | Multi-function | Double | Air Piloted | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Air Piloted | 4-way | T Series - Size 1 | Internal | 0.32 | Moduflex | M8 | Manifold Valve | Pneumatic | Moduflex | Multi-function | ||||||
| P2M1T4PS | Quote Required | $69.89/each | EA | EA | 0.32 | Multi-function | Single | Air Piloted | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Single | 2-position | Air Piloted | 4-way | T Series - Size 1 | Internal | 0.32 | Moduflex | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | |||||
| P2M1TDEE2C | Quote Required | $106.71/each | EA | EA | 0.22 | Multi-function | Double | Solenoid | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Solenoid | 3-way | T Series - Size 1 | Internal | 0.22 | Moduflex | Dual Valve, NC/NC w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | 24 VDC | 24 VDC | ||
| P2M1TDPP | Quote Required | $97.29/each | EA | EA | 0.22 | Multi-function | Double | Air Piloted | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Air Piloted | 3-way | T Series - Size 1 | Internal | 0.22 | Moduflex | Dual Valve, NC/NC w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | ||||
| P2M1TEEE2C | Quote Required | $111.02/each | EA | EA | 0.22 | Multi-function | Double | Solenoid | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Solenoid | 3-way | T Series - Size 1 | Internal | 0.22 | Moduflex | Dual Valve, NC/NO w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | 24 VDC | 24 VDC | ||
| P2M1TJEE2C | Quote Required | $139.78/each | EA | EA | 0.18 | Multi-function | Double | Solenoid | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Solenoid | 4-way | T Series - Size 1 | Internal | 0.18 | Moduflex | Dual Valve w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function | 24 VDC | 24 VDC | ||
| P2M1TJPP | Quote Required | $130.39/each | EA | EA | 0.18 | Multi-function | Double | Air Piloted | 1 | Internal | Automation | 5°F to 140°F (-15°C to 60°C) | Vacuum to 123 PSIG (Vacuum to 8.3 bar) | Double | 2-position | Air Piloted | 4-way | T Series - Size 1 | Internal | 0.18 | Moduflex | Dual Valve w/Exhaust Check | M8 | Spring Return | Manifold Valve | Pneumatic | Moduflex | Multi-function |
