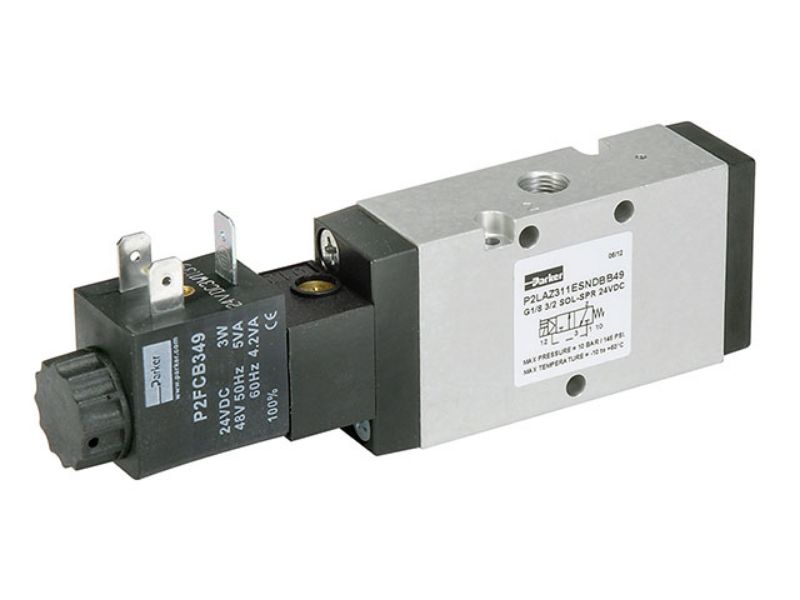

Parker P2LAZ391ESNDBB49 - Viking Lite Series Single Solenoid 3-way 2-position Valve

Name: Parker P2LAZ391ESNDBB49 - Viking Lite Series Single Solenoid 3-way 2-position Valve
SKU: P2LAZ391ESNDBB49
Price: 65.36 USD
Availability: InStock

Single Solenoid, 3-way, 2-position, Spring Return

Availability:

6 In Stock

Summerville, SC

Partner Available:

4 In Stock

Brand Parker

Part No. P2LAZ391ESNDBB49

$65.36

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Port	1/8 NPT
CV Factor	0.6	Operator Type Detail	Single
Solenoid Voltage	24VDC	Offset Return Type	Spring Return
Override Type	Non-locking	UOM	EA
Port	1/8 NPT	Valve Passages	3-way
Valve Positions	2-position	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
Operator Type	Solenoid	Parker Division	Pneumatic
Port Inch/BSP	NPT	Offset Return Type	Spring Return
CV Factor	0.6	Operator Type Detail	Single
Solenoid Voltage	24VDC	Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
Override Type	Non-locking	Series	Viking Lite
Trade Name	Viking Lite	Pneumatic Valve Type	Inline Valve
Operating Temperature	14°F to 122°F (-10°C to 50°C)	Pilot Supply	Internal
Parker Group	Automation
