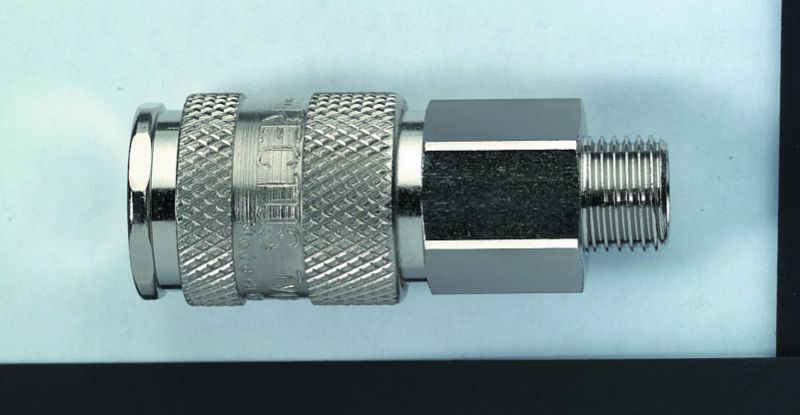

Parker 25KAAN13MPN - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 25KAAN13MPN

$48.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Division	Quick Coupling Division
Sleeve Type	Push to connect	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20.0 °C	Division	Quick Coupling Division
Plating Type	Nickel plating on steel sleeve	Application	Air
Body Material	Nickel Plated Brass	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Valve Type	Valved
Interchange Type	European High Flow	Body Size (inch)	1/4
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/4 - 18
Thread Style	Male	Connection Type	NPTF
Coupling Half	Coupler

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
