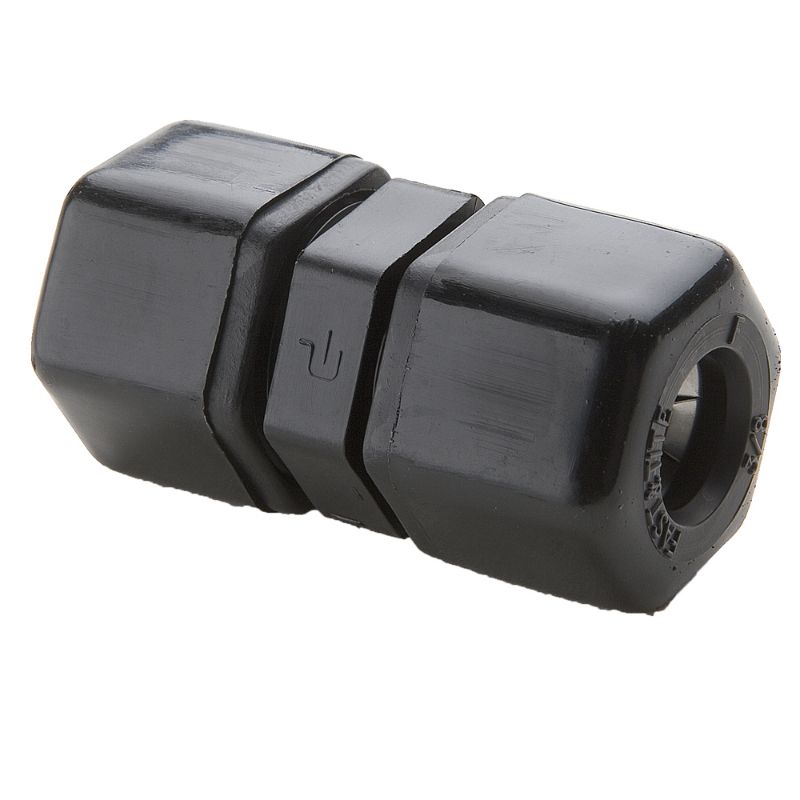

Parker P10UC10 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	130 In Stock

Brand Parker

Part No. P10UC10

$4.59

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	0 °F
Division	Fluid System Connectors Division	Dimensional Weight	0.5504 lb
Tube Material	Thermoplastic, Glass, Soft Metal	Specifications Met	FDA, NSF-51
Maximum Operating Temperature	100 °C	Gripping Ring Material	302 Stainless Steel
Media	Water, Air, Other Compatible Fluids	Maximum Operating Pressure	3.5 bar
O-Ring Material	Nitrile	Application	Filtration, Purification, Dispensing
Body Material	Polypropylene	Connection 1 Type	Compression
Body Material	Black Polypropylene	Configuration	Tube to Tube
Connection 2 Tube Outside Diameter	5/8" (O.D.)	Shape	Union
Connection 1 Tube Outside Diameter	5/8" (O.D.)	Connection 2 Type	Compression

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
