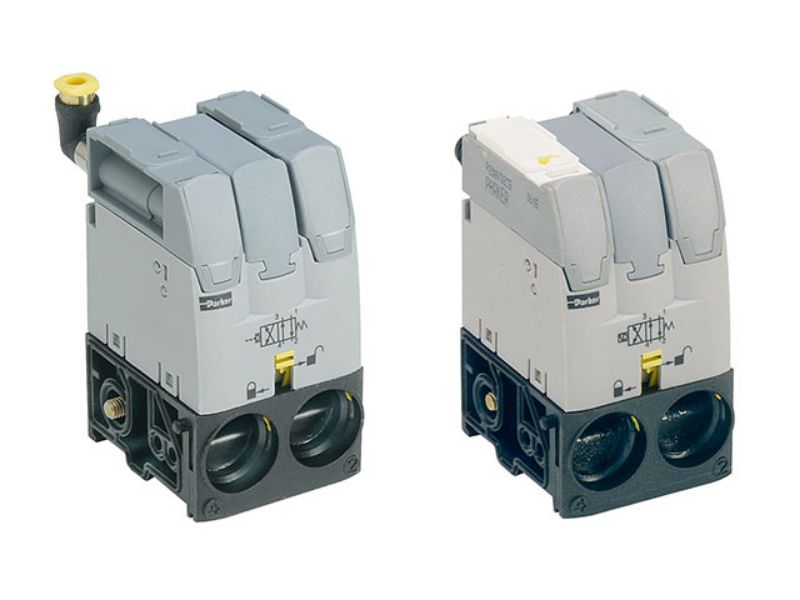

Parker P2M2T4ES2C - Moduflex T Series - Size 2 Valve

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2M2T4ES2C

$101.21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operator Type Detail	Double
CV Factor	0.8	Override Type	Multi-function
UOM	EA	Pkg Qty	1
Solenoid Voltage	24 VDC	Pilot Supply	Internal
Operator Type	Solenoid	Parker Group	Automation
Valve Passages	4-way	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Pilot Supply	Internal	Operating Temperature	5°F to 140°F (-15°C to 60°C)
CV Factor	0.8	Series Type	T Series - Size 2
Valve Positions	2-position	Series	Moduflex
Operator Type	Solenoid	Solenoid Connection	M8
Trade Name	Moduflex	Override Type	Multi-function
Offset Return Type	Spring Return	Operator Type Detail	Double
Solenoid Voltage	24 VDC	Pneumatic Valve Type	Manifold Valve
Parker Division	Pneumatic
