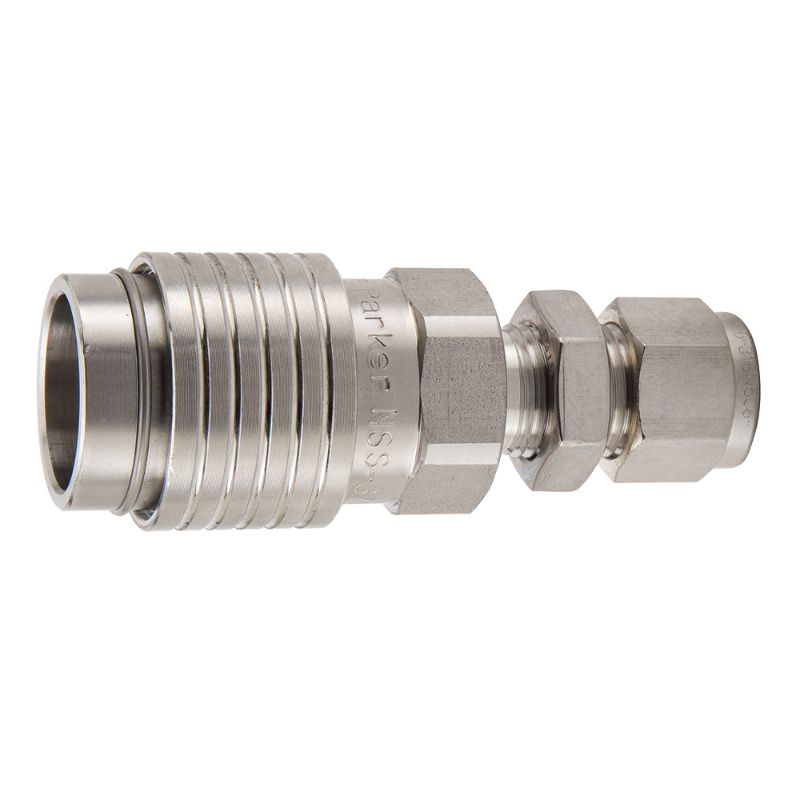

Parker NSS-501-12BMA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-501-12BMA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-70.0	Maximum Operating Temperature	250.0
Application	Thermal Management	Product Type	Push-to-Connect
Maximum Operating Pressure	300	Hex Size	1.25
Body Material	Stainless Steel	Connection Type	Female Thread - Bulkhead Mount
Seal Material	EPDM	Valve Type	Flat Face
Division	Quick Coupling Division	Flow Rate	12
Connection Thread Size (inch)	3/4 A-Lok	Coupling Half	Female Coupler
Hose I.D.	NA	Body Size (inch)	1/2
