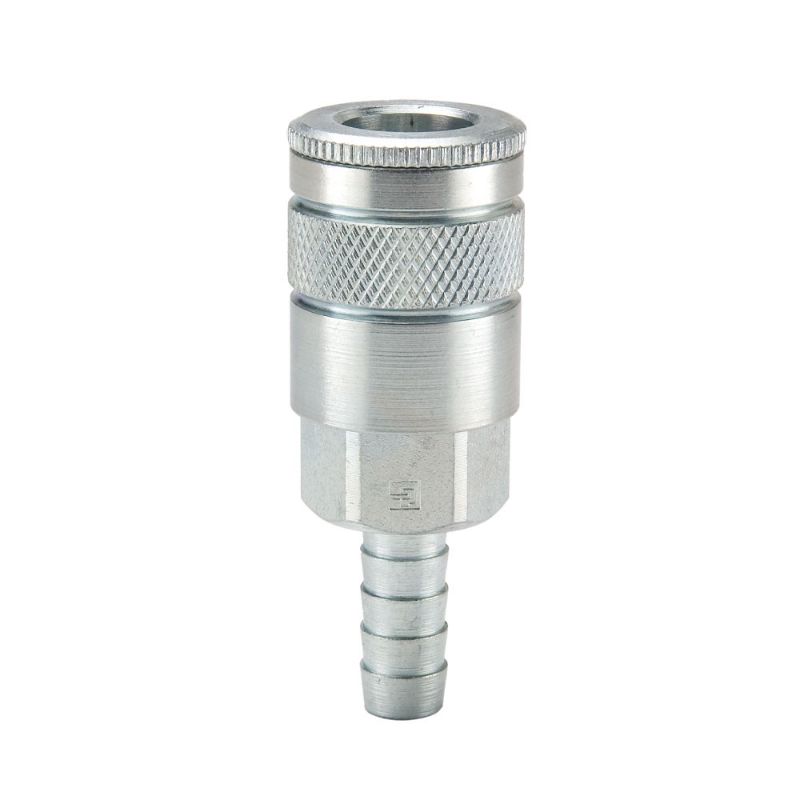

Parker 14-5B - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 14-5B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Application	Pneumatic
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Interchange Type	Tru-Flate design
Maximum Operating Pressure	300 psi	Valve Type	Tubular
Hex Size	na inch	Body Material	Steel
Hose I.D. (inch)	3/8	Body Size (inch)	3/8
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Hose barb
