*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

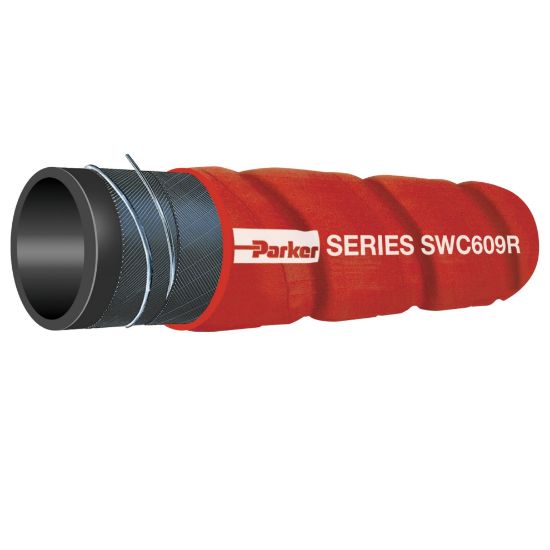

Parker SWC609R-2500 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC609R-2500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Vacuum Pressure Rating	29	Nominal Hose Inside Diameter	65
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Cover Structure	Corrugated
Maximum Operating Pressure	200	Application	Petroleum Transfer
Hose Inner Tube Material	Black	Division	Hose Products Division
Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Minimum Operating Temperature	-40
Cover Material	Nitrile	Inside Diameter	2-1/2
Minimum Bend Radius	2.5	Outside Diameter	3
Size	-40	Maximum Operating Temperature	180
Weight	1.44	Color	Red
Hose I.D. (inch)	2-1/2
