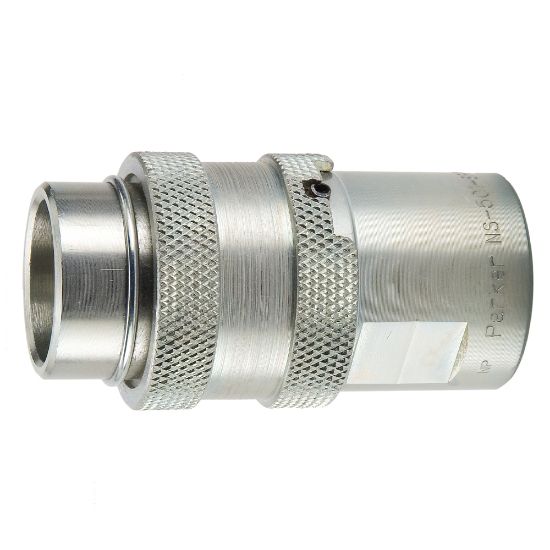

Parker NS-372-6FP-E4 - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NS-372-6FP-E4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Hex Size	0.94 inch	Minimum Operating Temperature	-15 °F
Seal Material	Flourocarbon	Application	Hydraulics
Flow Rate	10 Gal/min	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Product Type	Push to Connect
Valve Type	Non-spill	Maximum Operating Pressure	2500 psi
Coupling Half	Male Nipple	Connection Type	Female NPSF
Connection Thread Size (inch)	3/8 - 18	Body Size (inch)	3/8
