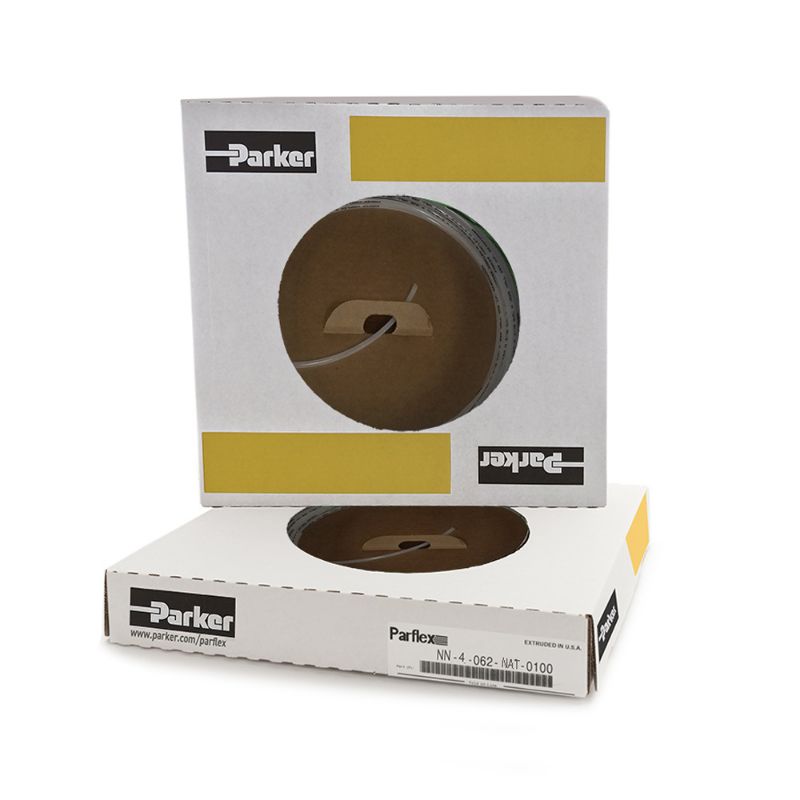

Parker NN-4-035-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

AFP Availability:	Quote Required
Partner Available:	104 In Stock

Brand Parker

Part No. NN-4-035-0100

$1.09/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.016 kg/m
Length per Package	34.8 m Box	Maximum Operating Pressure	17.2 bar
Color	Natural	Minimum Operating Temperature	-54 °C
Application	Robotics	Tube Material	Polyamide (PA)
Tube Outside Diameter	1/4 inch	Specifications Met	n/a
Minimum Bend Radius	22.4 mm	Cover Material	n/a
Media	Lubricants	Size	-4
Minimum Burst Pressure	1000 psi	Compatible Fitting	TrueSeal™
Tube Inside Diameter	0.180 inch	Maximum Operating Temperature	93 °C
Division	Parflex Division	Order Size	1/4
Standard Pack Qty (ft)	100 ft box	Color	Natural
