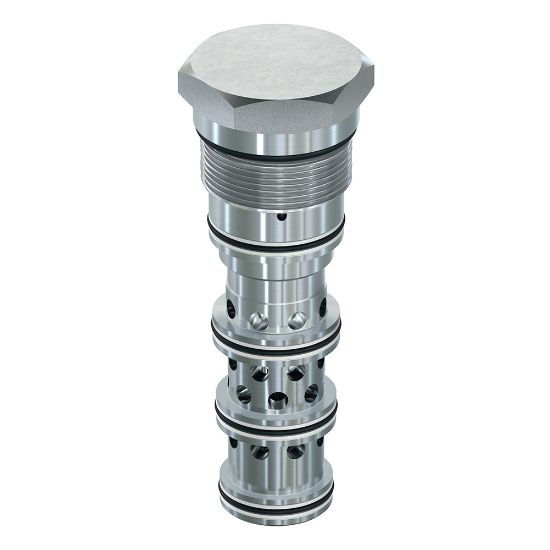

Parker N5C300-3.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5C300-3.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Weight	2.2 lb
Division	Mobile Hydraulic Systems Division Europe	Maximum Inlet Pressure Rating	420 bar
Flow Rate	400 L/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+121 °C
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Cavity Size	100-1
Actuation Type	Switching	Maximum Flow Rate	105 Gal/min
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted
Switching Pressure	44 psi	Installation Torque	118 lb-ft
Standard Flow Rate Setting	130 (3 to 2), 240 (3 to 4) L/min	Seal Material	Nitrile
Configuration	Normally Open	Flow Rate	105 GAL/MIN, 400 L/MIN
Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted	Switching Pressure	44 PSI, 3 BAR
Standard Flow Rate Setting	34 (3 to 2), 63 (3 to 4) GAL/MIN, 130 (3 to 2), 240 (3 to 4) L/MIN
