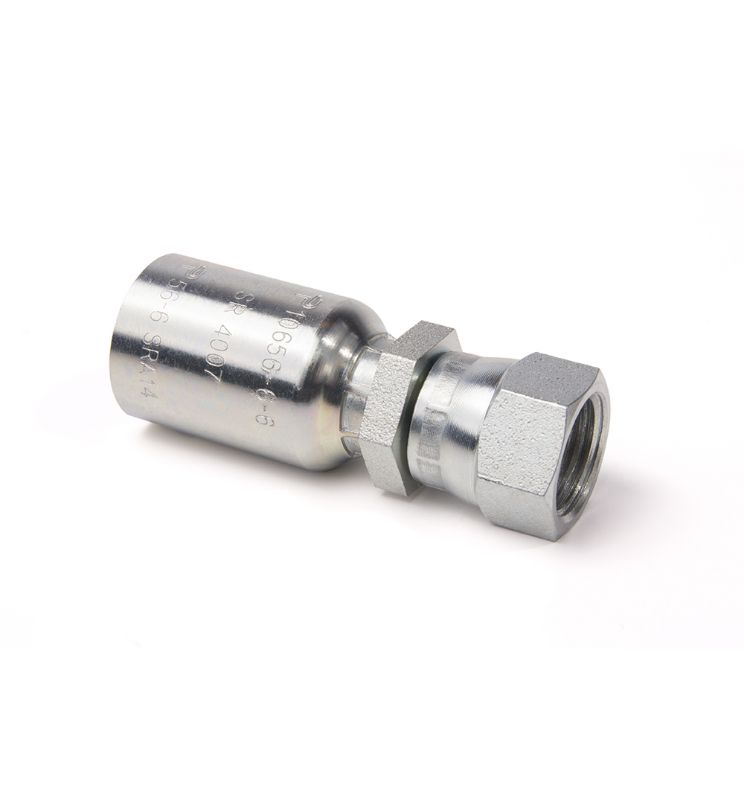

Picture of Parker 10656-2-4 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10656-2-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
15 In Stock
Richmond, VA15
Partner Available:Quote Required
Brand Parker
Part No. 10656-2-4
$325.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABrandParker
ShapeStraightDivisionParflex Division
TechnologyFluid & Gas HandlingCoatingChromium 6 Free-plated
DivisionParflex DivisionConfigurationHose to Port
For Fluid TypeOilConnection 1 TypeHose
Tube Outside Diametern/aBody MaterialSteel
IndustryIndustrial Manufacturing EquipmentApplicationUtility Equipment
Maximum Operating Pressure34.5 MPa (Dependent on hose)Hex Size1/2 inch (see drawing legend H)
Hex Size 2n/aConnection 1 Size1/4 inch Hose I.D.
Connection 2 TypeFemaleConnection Length25 mm Cut-off allowance
Hex Size 17/16 inch (see drawing legend J)Fitting Length50 mm (see drawing legend A)
Shipping Weight0.033 kgConnection 2 Size3/8"-24 inch Thread
Materials of ConstructionSteelProduct StyleFemale JIC 37° - Swivel - Straight
Hose I.D. (inch)0.25"Length (inch)1.98"
Connection 2 Size3/8"-24
