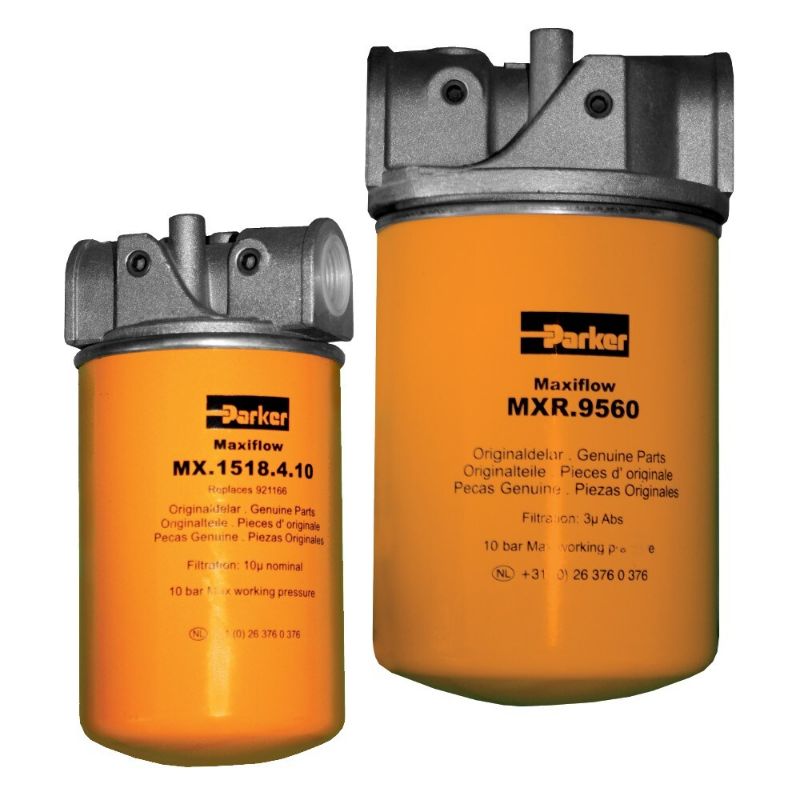

Parker MXA2310QBG2GG201 - Low Pressure In-Line Spin-On Filter - Maxiflow Series

The Maxiflow Series is a range of spin-on filters designed to provide low cost quality protection for hydraulic or lubrication systems.
Maximum pressure 10 bar. Maximum flow 360 l/min.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXA2310QBG2GG201

$254.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Industry	Construction
Materials of Construction	Housing: Aluminium	Product Series	Maxiflow
Brand	Parker	Housing Material	Aluminium
Flow Rate	up to 360 L/min	Operating Pressure	150 psi
Mounting Type	Inline	Product Style	Inline Spin-On Filter
Application	Telescopic Handlers	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Type	Hydraulic Filter	Operating Temperature	-22 to 212 °F
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Hydraulic Oils
Indicator Pressure Setting	1.2 bar	Technology	Filtration
Seal Material	Nitrile	Options	Standard
Indicator Type	Visual	Micron Rating	10 µm
Filter Element Type	10Q Microglass	Flow Rate	0 to 100 l/min
Connection Type	G1¼	Bypass Valve Pressure Rating	1.7 bar
