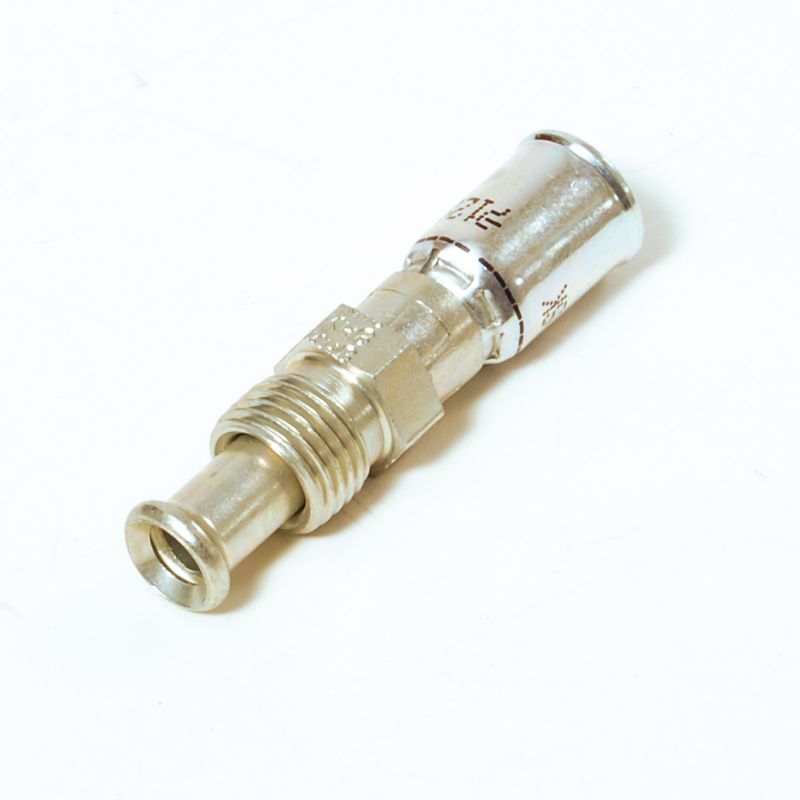

Parker 12891N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 12891N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 12891N-10-10
Price: 61.88 USD
Availability: LimitedAvailability

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

4 In Stock

Johnson City, TN	2
Norfolk, VA	1
Ashland, VA	1

Partner Available:

16 In Stock

Brand Parker

Part No. 12891N-10-10

$61.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Application	Instrumentation	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 1	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)	Body Material	Steel
Connection 1 Size	1/2 inch Hose I.D.	Product Series	91N
Hex Size	7/8 inch (see drawing legend J)	Industry	Healthcare & Life Sciences
Fitting Length	58 mm	Dimensional Weight	0.0522 lb
Connection 2 Size	7/8"-18 inch Thread	Connection Length	1-3/4 inch Cut-off allowance (see drawing legend B)
Hose I.D. (inch)	0.5"	Length (inch)	2.43"
Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)	Connection 2 Size	7/8"-18
