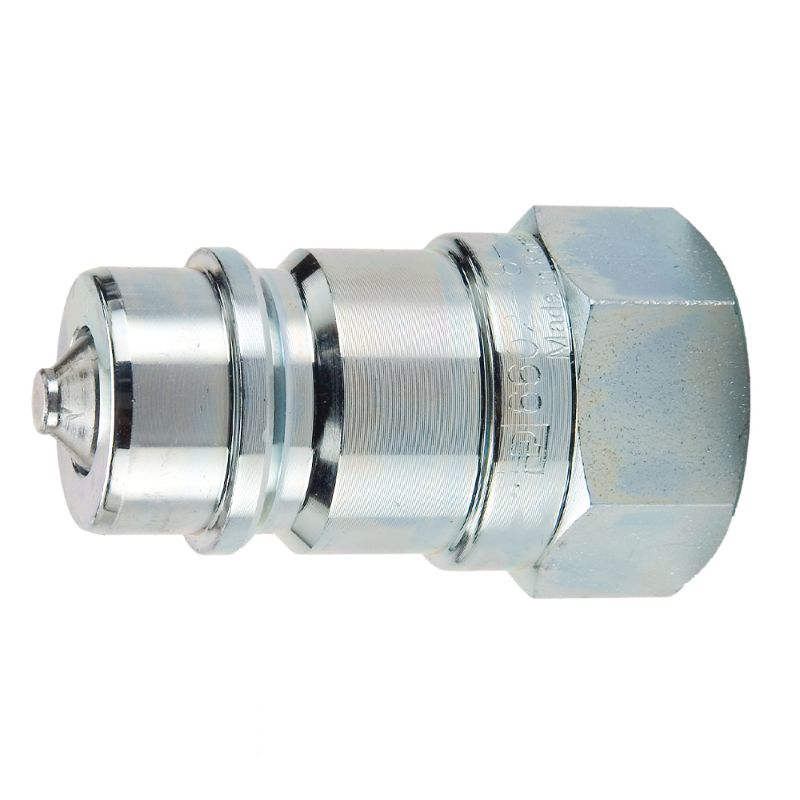

Parker 6602-12-12 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Name: Parker 6602-12-12 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series
SKU: 6602-12-12
Price: 38.30 USD
Availability: InStock

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

AFP Availability:

84 In Stock

North Chesterfield, VA	38
Norfolk, VA	9
Fayetteville, NC	6
Sumter, SC	6
Richmond, VA	5 (Pickup only)
West Knoxville, TN	4
East Knoxville, TN	4
Mooresville, NC	4
Ashland, VA	3 (Pickup only)
Jacksonville, FL	2
Johnson City, TN	2 (Pickup only)
Summerville, SC	1

Partner Available:

648 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 6602-12-12

$38.30/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Product Type	Manual Connect
Plating Type	Zinc with Clear Trivalent Chromate	Application	Hydraulics
Minimum Operating Temperature	-40 °F	Body Material	Steel
Hex Size	1.38 inch	Seal Material	Nitrile
Maximum Operating Pressure	4000 psi	Specifications Met	ISO 7241-1 Series A
Flow Rate	28 Gal/min	Dimensional Weight	0.07997601918465227 lb
Valve Type	Poppet	Interchange Type	ISO 7241-1 Series A
Coupling Half	Male Nipple	Connection Type	Female NPTF
Connection Thread Size (inch)	3/4 - 14	Body Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
