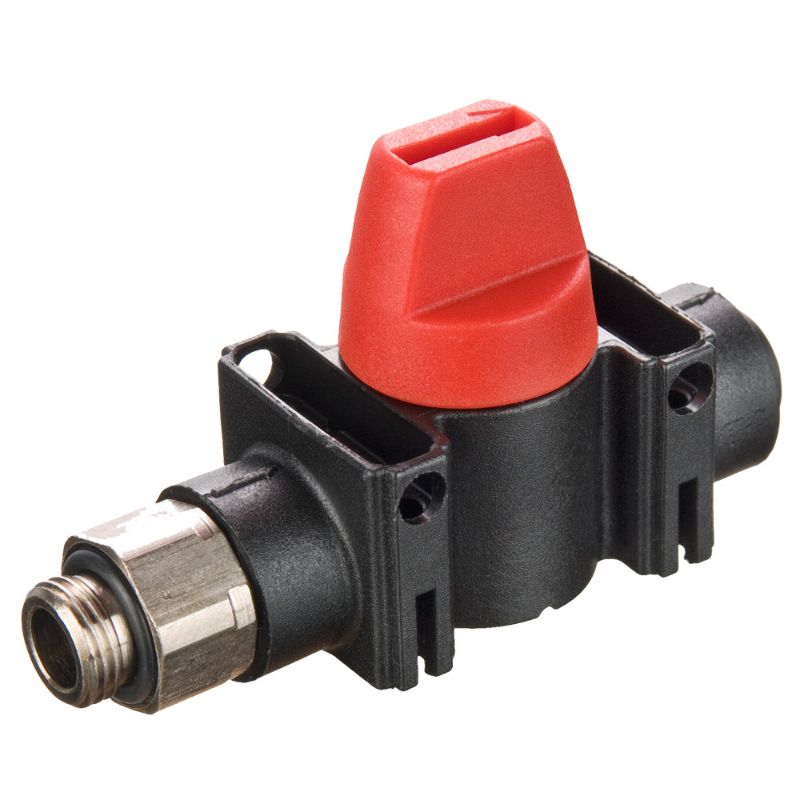

Parker MVV308-6M-2G - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVV308-6M-2G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Minimum Operating Temperature	-4 °F
Vacuum Pressure Rating	28 Inch-Hg	Seal Material	NBR
Specifications Met	N/A	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Maximum Operating Temperature	175 °F
Maximum Flow Rate	n/a	Shape	In-Line
Body Material	Nylon	Maximum Operating Pressure	145 psi
Actuation Type	Manual	Configuration	Tube to Pipe
Operation Type	n/a	Vented	Yes
Function	2-Way, Normally Open, Normally Closed	Application	Pneumatics,Packaging, Vacuum,Robotics, Textile
Connection Size	6 x G1/8 mm	Handle Type	Nylon
Orifice Size	.16	Product Type	Mini Ball Valve
Ball Material	Brass	Mounting Type	Panel
Seat Material	Nylon	Stem Material	Brass
Connection Type	PTC x NPT
