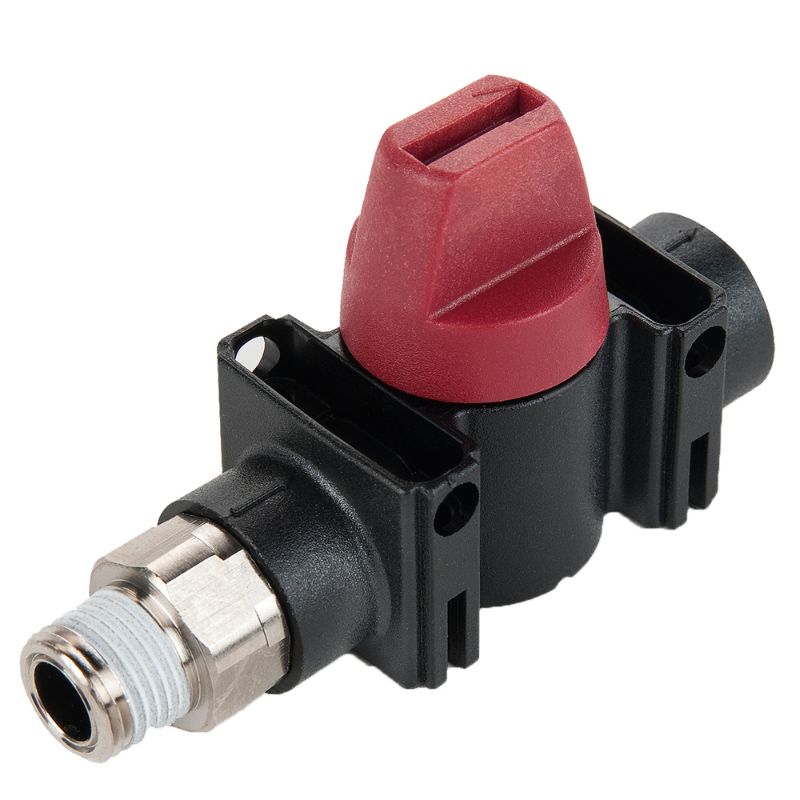

Parker MVV308-6-6 - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVV308-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	80 °C
Minimum Operating Temperature	-20 °C	Vacuum Pressure Rating	28 Inch-Hg
Seal Material	NBR	Specifications Met	N/A
Maximum Operating Pressure	10 bar	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Maximum Flow Rate	n/a
Shape	In-Line	Body Material	Nylon
Actuation Type	Manual	Configuration	Tube to Pipe
Operation Type	n/a	Vented	Yes
Function	2-Way, Normally Open, Normally Closed	Application	Pneumatics,Packaging, Vacuum,Robotics, Textile
Connection Size	3/8 x 3/8 inch	Handle Type	Nylon
Orifice Size	.25	Product Type	Mini Ball Valve
Ball Material	Brass	Mounting Type	Panel
Seat Material	Nylon	Stem Material	Brass
Connection Type	PTC x NPT

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
