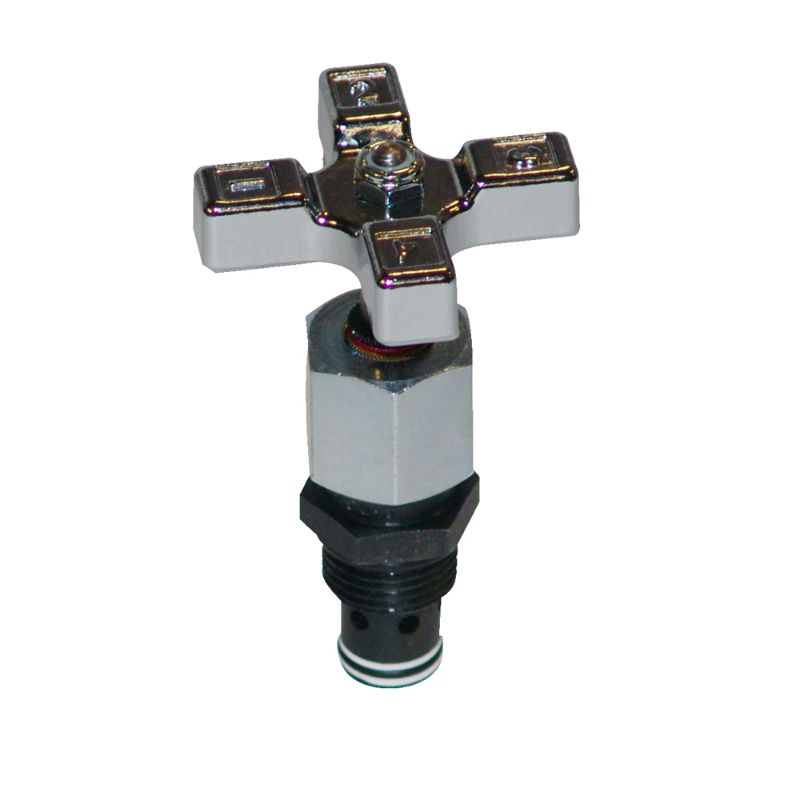

Parker MVI400S2 - Colorflow Precision Needle Valve – MVI Series

Parker’s Colorflow MVI series is a cartridge-type metering valve that meters flow in both directions.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVI400S2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	For Fluid Type	Oil
Body Material	Steel	Connection Type	NPT
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Actuation Type	Manual	Brand	Colorflow
Maximum Flow Rate	11	Minimum Operating Temperature	-40°
Maximum Operating Temperature	+250	Flow Rate	2.8
Connection Size	1/4"	Function	Needle Valve
Configuration	Cartridge Type	Product Style	Metering Valve
Body Material	Steel	Seal Material	Nitrile
Flow Rate	n/a	Connection Type	NPT
Maximum Operating Pressure	5000	Minimum Operating Temperature	-40
Actuation Type	Manual	Connection Size	1/4
Maximum Flow Rate	2.8	Function	Needle Vlave
Maximum Operating Temperature	+250° F	Configuration	Cartridge Type
Needle option	Fine	For Fluid Type	Hydraulic Oil
Operation Type	N/A
