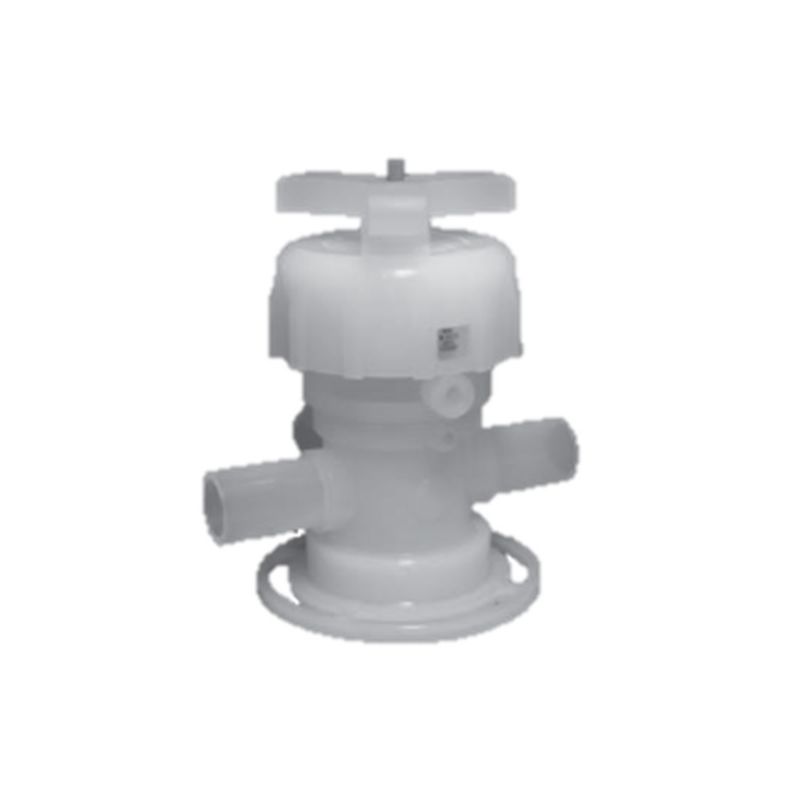

Parker MV-16-3612 - UHP PFA Manual Diaphragm (3/4 inch) 3 Way Valve – MV-16 Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV-16-3612

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Veriflo Division	Pressure Rating	0-120 psig (8.3 bar)
Flow Rate	Cv 5.4 Cv	Wetted Material	PFA. Modified PTFE
Minimum Ambient Temperature	-17 °C	Length	5.54 inch
Maximum Ambient Temperature	66 °C	Maximum Fluid Temperature	266 °F
Minimum Fluid Temperature	-17 °C	Flow Coefficient	Kv 77.0 L/min
Non-Wetted Material	PVDF, Viton, PTFE Coated SS Spring	Flow Control	3 Way (COM, NC, NO)
Port Connection Type	3/4" Parflare	Nut Material	PVDF
