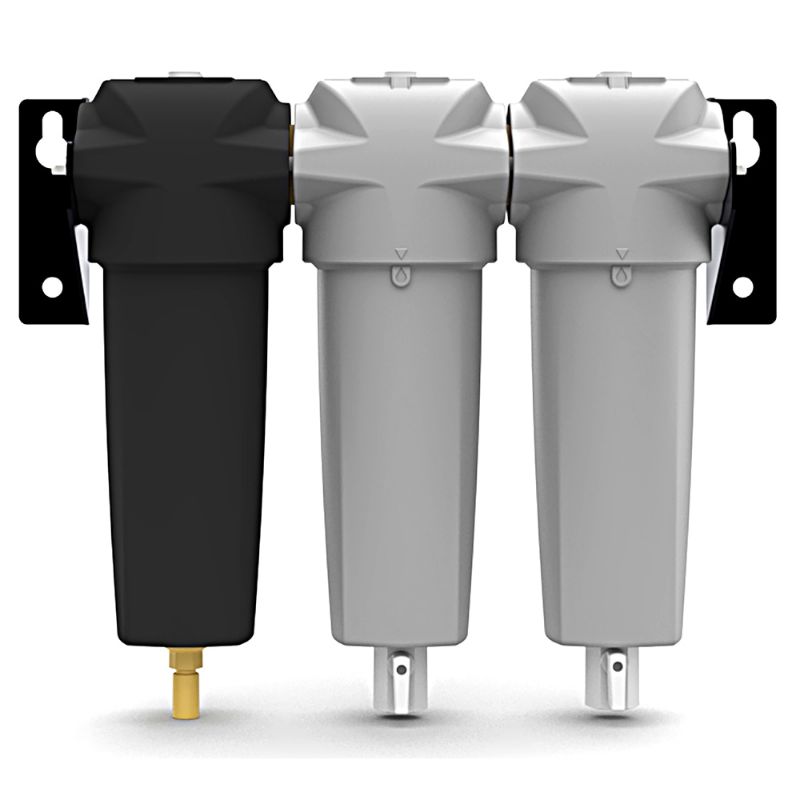

Parker WSPX015CGFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WSPX015CGFX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	2 to 60 °C	Division	Gas Separation and Filtration Division EMEA
Depth	3.31 inch	Height	238.0 mm
Weight	1.41 kg	Operating Pressure	1.5 to 16 barg
Materials of Construction	Die Cast Aluminium	Division	Gas Separation and Filtration Division EMEA
Application	Compressed Air and Nitrogen Gas Applications	Product Type	Compressed Air Filter
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Product Series	OIL-X Grade WS
Width	89.0 mm	Filter Type	Water Separator
Brand	Parker	Technology	Filtration
Pressure Differential	55.0 mbar Initial Saturated, 100% Flow	Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Micron Rating	n/a	Maximum Flow Rate	144 m³/h @ 7 barg (85 cfm @ 102 psig)
Drain Option	Automatic Float	Electrical Requirements	N/A
Connection Type	BSPP	Port Size	½ inch
Compatible Element	N/A	Drain	Float

Product resources

Compliance, Certifications & Safety

Guarantee - OIL-X Filter Range Compressed Air Purity & Die Cast Filter Housing (PDF)

Literature and Reference Materials
