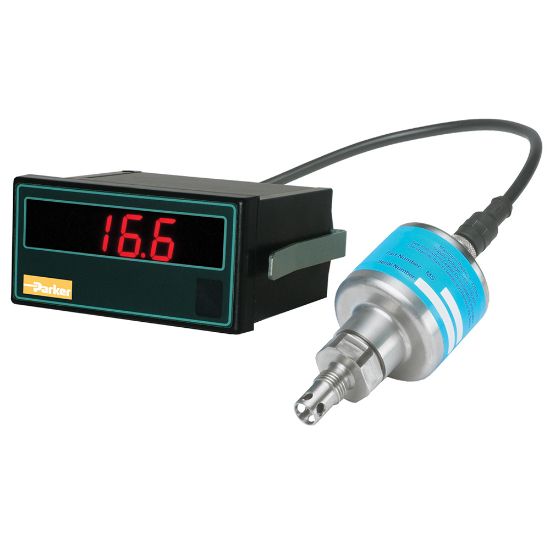

Parker MS2602110 - Fluid Moisture Sensor – iCountMS Range

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MS2602110

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Ingress Protection Rating	IP68	Industry	Industrial Plant
Operating Temperature	-40 to 85 °C	Product Type	Condition Monitor
Accuracy	+/- 5 %	Height	50 mm
Specifications Met	CE Certification	Width	50 mm
Maximum Fluid Temperature	85 °C	Division	Hydraulic & Industrial Process Filtration Division EMEA
Seal Material	Perfluoroelastomer	Minimum Fluid Temperature	-40 °C
Operating Pressure	420 bar	Brand	Parker
Division	Hydraulic & Industrial Process Filtration Division EMEA	Diameter	50 mm
Length	106 mm	Technology	Filtration
Application	Power Transmission and Distribution Equipment	Product Style	Moisture Sensor
Sensing Method	Relative Humidity RH cell %	Weight	300 g
Connection Size	M12X1 - 8 way	Product Series	iCountMS
Body Material	Stainless Steel 303	Electrical Requirements	8 to 30 VDC
For Fluid Type	Petroleum	Materials of Construction	Stainless Steel 303
Fluid Type	Petroleum, Synthetic Oils	Options	Programmable
Port Size	1/4"	Port Type	BSP Bonded Seal
Signal Output	0-5 Vdc
