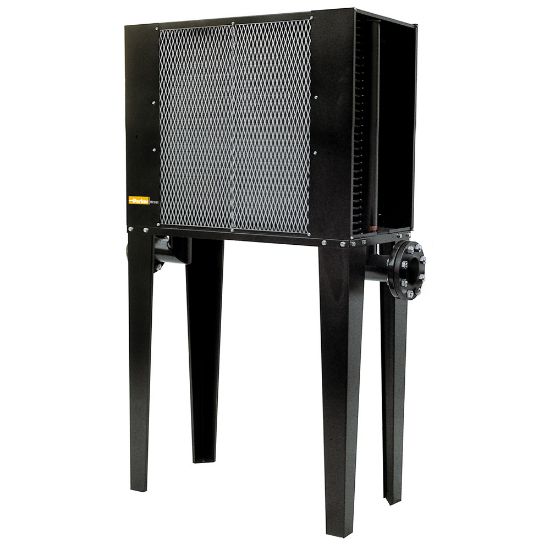

Parker ADT014 - Hypercool Air Cooled Aftercooler

Highly efficient air cooled aftercoolers for the removal of water vapour and cooling of compressed air downstream from compressors and blowers.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ADT014

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Air Cooled	Height	61.0 inch
Product Type	Aftercooler	Industry	Automotive
Brand	Parker	Noise Level	62.1 dBA
Application	Compressed Air	Weight	233 lb
Maximum Air Inlet Temperature	200 °C	Division	Gas Separation and Filtration Division EMEA
Product Series	Hypercool Air Cooled Aftercooler	Depth	20.8 inch
Micron Rating	Not Applicable	Operating Pressure	16 barg (max.)
Width	50.0 inch	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Flow Rate	840 m³/h @ 7 barg (494 cfm @102 psig)
Port Size	2"	Electrical Requirements	400V/3ph/50Hz
Connection Type	BSPP
