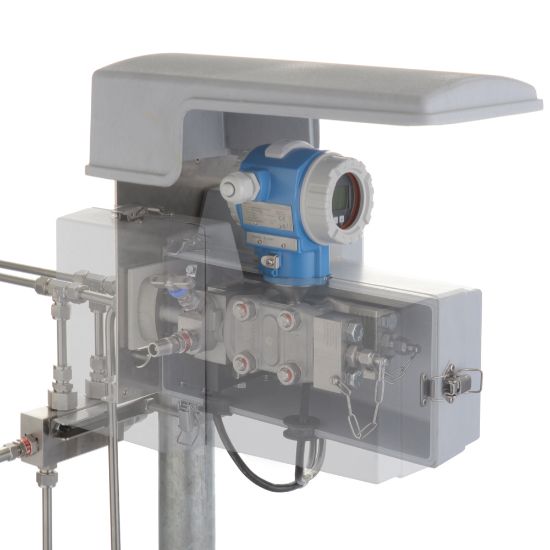

Parker MMHOMDHC2B6098562351-PTFE - MESC Compliant Modular Manifolds

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMHOMDHC2B6098562351-PTFE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bolt Material	ASTM A193-B8 CL2	Vent Size	10 mm
Maximum Operating Pressure	400	Specifications Met	ISO 10474-3.1B
Outlet Connection Size	DIN 19213	Division	Instrumentation Products Division
MESC Number	609856.235.1	Connection Type	Single Ferrule Compression Fitting
Block Type	Single Isolate/Vent	Packing Material	PTFE
Maximum Operating Temperature	200	Number of Valves	2 Valve
Process/Vent Size	10 mm	Material	Alloy C-276
Connection Type	Single Ferrule Compression Fitting	MESC Number	609856.235.1
Outlet Connection	DIN 19213

Product resources

Compliance, Certifications & Safety

ABS Product Design Assessment - MESC Compliant Modular Mounting Systems (PDF)

Literature and Reference Materials
