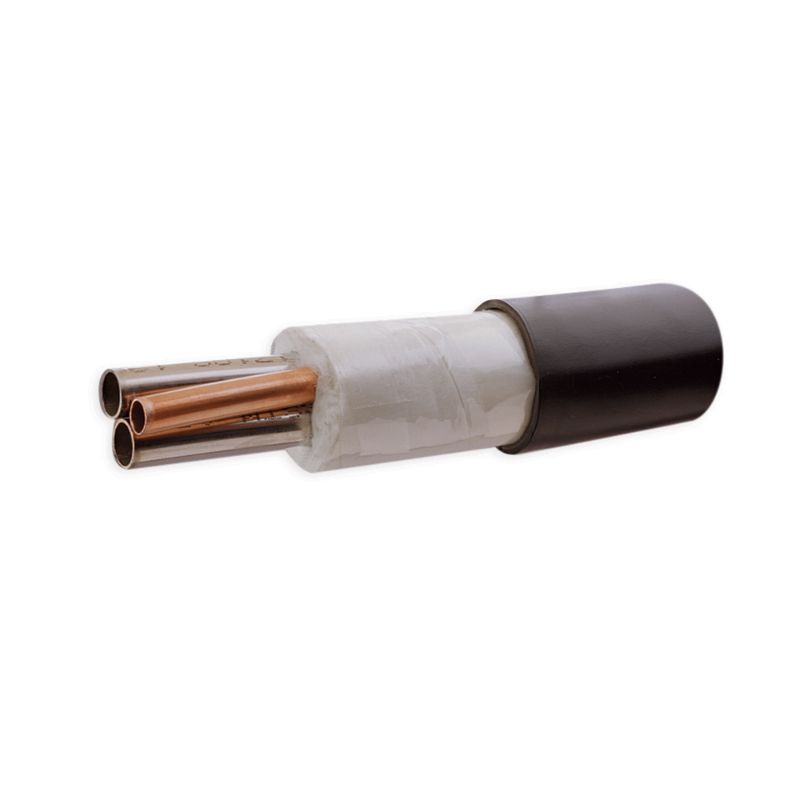

Parker HT-20435B-10430 - OBSOLETE: Heavy Steam Trace Bundles - HT-Temptrace™

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HT-20435B-10430

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Vertical Support Center Height Requirements	10 to 15	Process Tube Material	Welded Stainless Steel Type 316/316L ASTM A269
Tracer Tube Material	Seamless Copper Type 122 DHP ASTM B68/B75	Process Tube Outside Diameter	1/4
Minimum Bend Radius	12	Tracer Tube Outside Diameter	1/4
Tracer Tube Wall Thickness	0.03	Nominal Outside Diameter	1.2
Horizontal Support Center Length Requirements	5 to 6	Cover Color	Black
Division	Parflex Division	Number of Tubes	2
Maximum Operating Temperature	400	Cover Material	FR-PVC
Process Tube Wall Thickness	0.035	Tracer Tube O.D. (inch)	1/4
Number of Tubes	2	Process Tube O.D. (inch)	1/4
Process Tube Material	Welded Stainless Steel Type 316/316L ASTM A269
