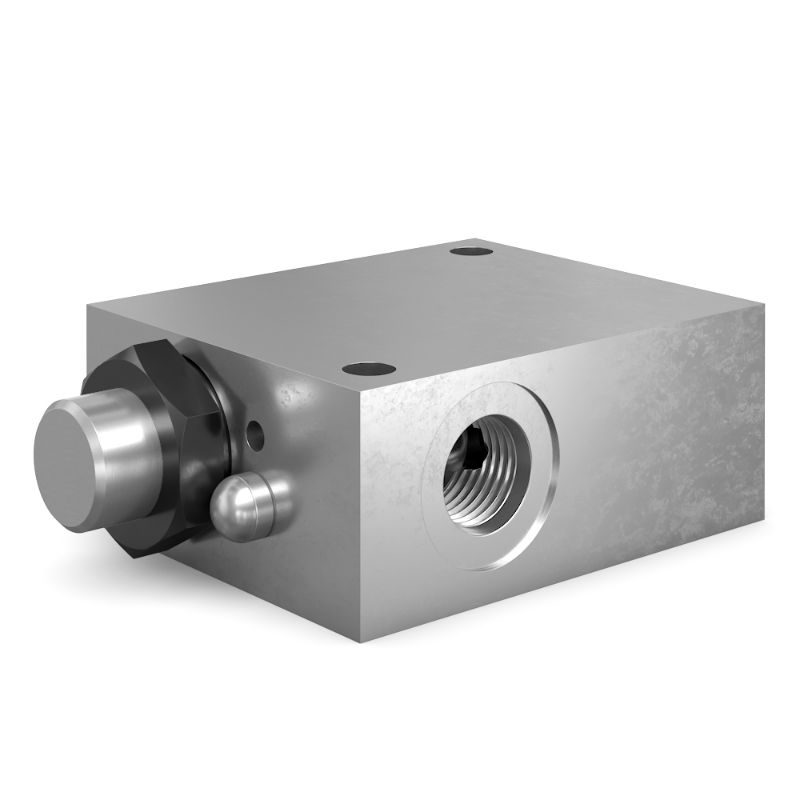

Parker MHB-015-LEBH-51E - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHB-015-LEBH-51E

$182.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Actuation Type	Pilot Operated
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Flow Rate	15 Gal/min	Pilot Location	External
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Body Material	Aluminum	Minimum Operating Temperature	-34 °C
Cavity Size	n/a	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	3000 psi	Weight	1.5 lb
Function	Counterbalance Valve	Holding Pressure	210 bar
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Installation Torque	N/A Nm
Port Size	SAE-6	Flow Direction	Cylinder port C, Valve port V, Pilot port P
Leak Rate	5 @ 80% of setting drops/min	Mounting Type	Single Gasket
Pilot Pressure Ratio	6:1	Pressure Control Range	105-210 bar
Pressure Control Sensitivity	N/A psi	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Holding Pressure	3000 PSI, 210 BAR
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Port Size	SAE-6
Mounting Type	Single Gasket	Pilot Pressure Ratio	6:1
Pressure Control Range	1500-3000 PSI, 105-210 BAR
