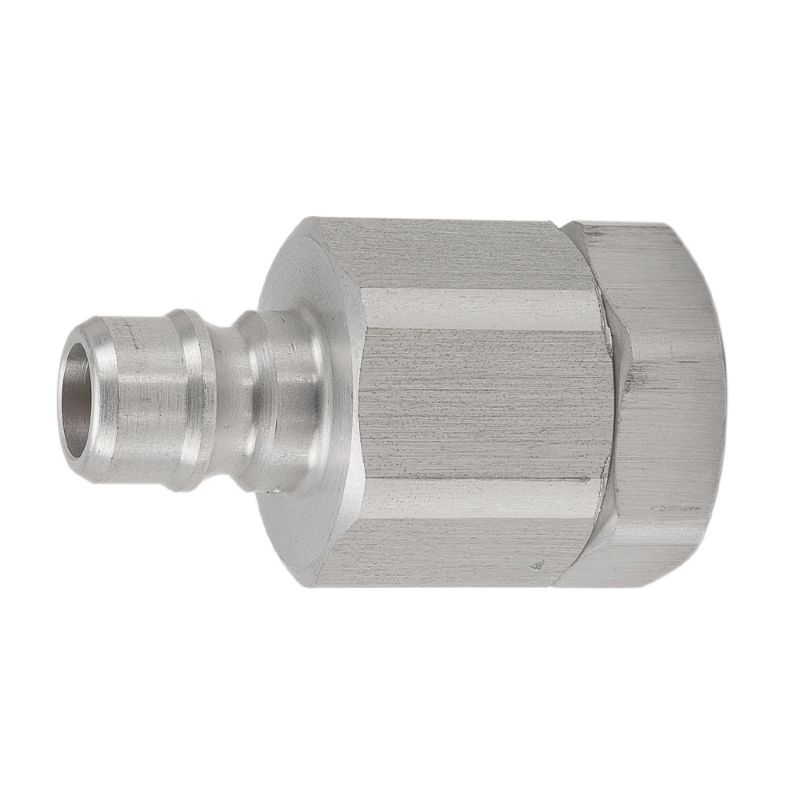

Parker AVHN4-4F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVHN4-4F

$37.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Hydraulic, General Purpose
Product Type	Manual Connect	Plating Type	na
Seal Material	Nitrile	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Hex Size	0.88 inch	Minimum Operating Temperature	-40 °F
Body Material	Aluminum	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF	Valve Type	Poppet
Body Material	Aluminum	Maximum Operating Pressure	2250
