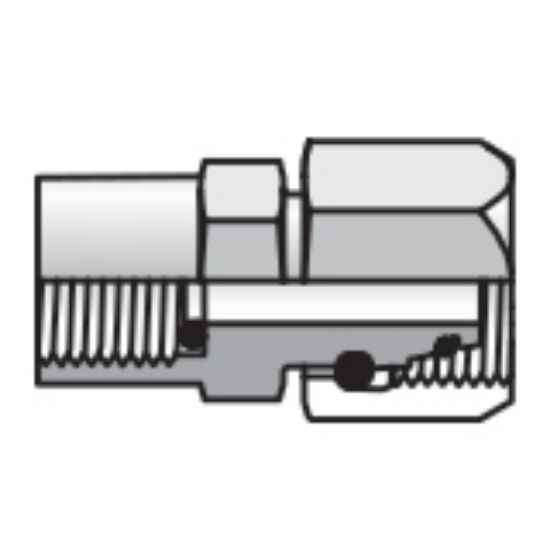

Parker MAVE08SRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. MAVE08SRCF

$53.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Static Pressure	9100 psi
Maximum Dynamic Pressure	9100 psi	Division	Tube Fittings Division
Connection Type	BSPP Pressure Gauge Adapter	Body Material	Steel
Connection 2 Thread Size (mm)	na	Connection 1 Tube O.D. (inch)	na
Connection 1 Style	Male 24° Metric Flareless Swivel	Connection 3 Style	na
Connection 2 Tube O.D. (mm)	na	Connection 2 Style	Female BSPP with Sealing Washer
Connection 2 Thread Size (inch)	1/2-14	Body Material	Steel
Connection 2 Tube O.D. (inch)	na	O-Ring Material	NBR
Connection 3 Thread Size (mm)	na	Connection 1 Tube O.D. (mm)	8S
Connection 3 Thread Size (inch)	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
