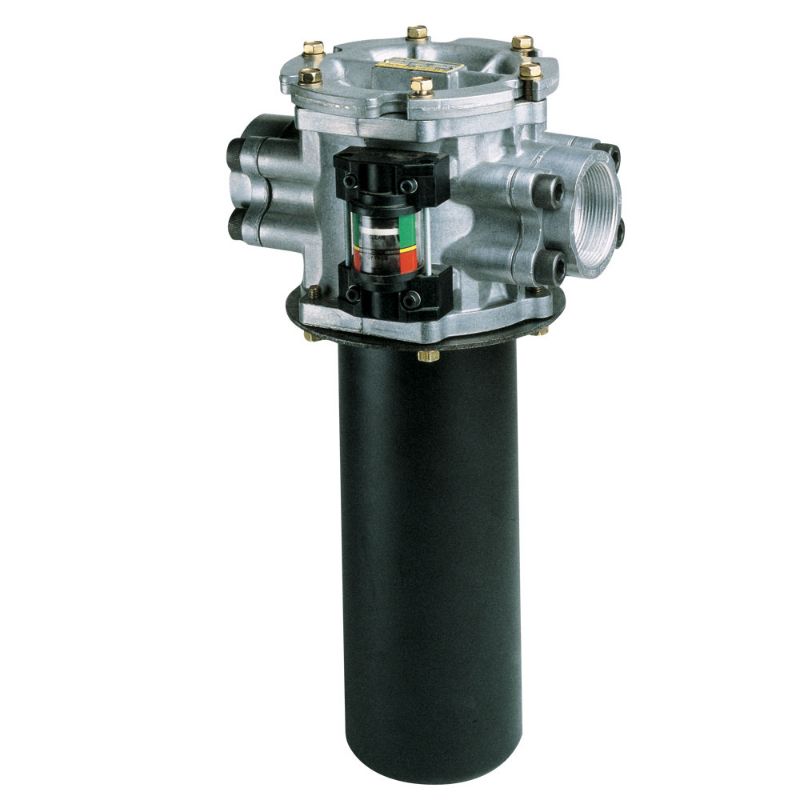

Parker ILP110QBMP35Y9Y91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. ILP110QBMP35Y9Y91

$638.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Inline
Indicator Type	Visual, Port Plugged	Bypass Valve Pressure Rating	2.4 bar
Housing Material	Aluminum	Flow Rate	90 Gal/min
Port Type	2 inch SAE flange face, 2 inch SAE flange face	Seal Material	Nitrile
Compatible Element	937395Q	Weight	20 lb
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	13.8 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	225 °F	Options	None
Indicator Pressure Setting	2.17 bar	Seal Material	Nitrile
Options	None	Filter Element	10Q Microglass
Bypass Valve (psi)	35	Port Connection Type	2 inch SAE flange face, 2 inch SAE flange face
Flow Rate (gpm)	90	Indicator Type	Visual, Port Plugged
