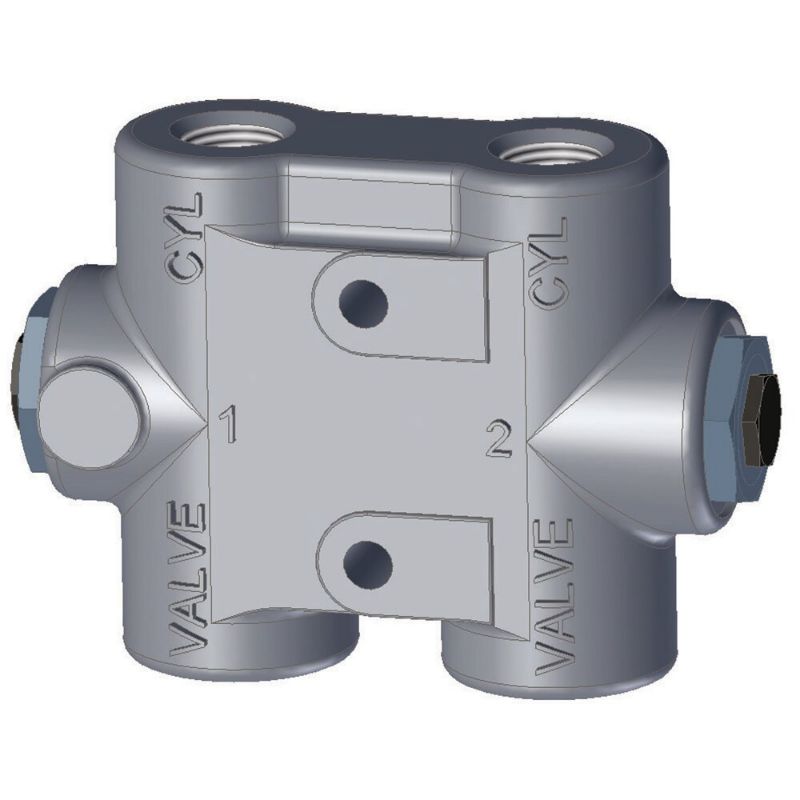

Parker LO-10-D - Pilot Operated Check Valves – LO, LOA Series

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LO-10-D

$355.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Seal Material	n/a	Actuation Type	Hydraulic Pressure
Flow Direction	n/a	Maximum Flow Rate	25 Gal/min
Connection Size	#10	Weight	6 lb
Mounting Type	In-Line	Maximum Operating Temperature	+200 °F
Division	Hydraulic Valve Systems Division	Connection Type	SAE
Maximum Operating Pressure	3000 psi	Configuration	n/a
Body Material	High Strength Cast Iron	Options	Double PO Check
Product Style	Piolt Operated Check Valve	Flow Rate (gpm)	25
Port Size	SAE-10	Valve Option	Double
