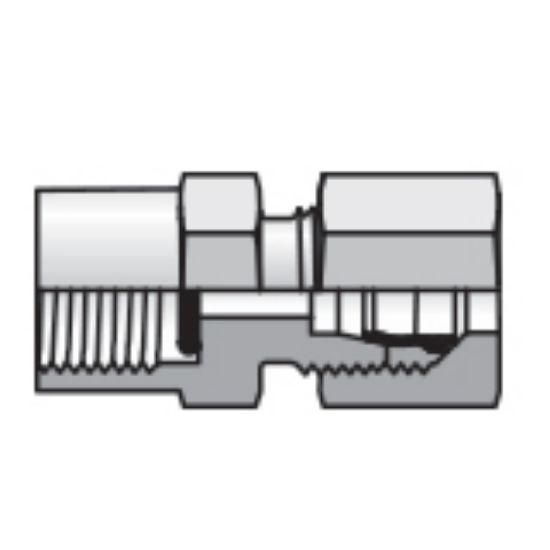

Parker MAV10LRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Quote Required
Partner Available:	52 In Stock

Brand Parker

Part No. MAV10LRCF

$16.76

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	BSPP Pressure Gauge Adapter
Maximum Static Pressure	4500 psi	Division	Tube Fittings Division
Maximum Dynamic Pressure	4500 psi	Body Material	Steel
Connection 1 Tube O.D. (mm)	10L	Connection 1 Style	Male 24° Metric Flareless with Nut and Ferrule
Body Material	Steel	O-Ring Material	NBR
Connection 3 Thread Size (mm)	na	Connection 2 Tube O.D. (inch)	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	1/4-19
Connection 2 Thread Size (mm)	na	Connection 1 Tube O.D. (inch)	na
Connection 3 Style	na	Connection 2 Tube O.D. (mm)	na
Connection 2 Style	Female BSPP with Sealing Washer

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
