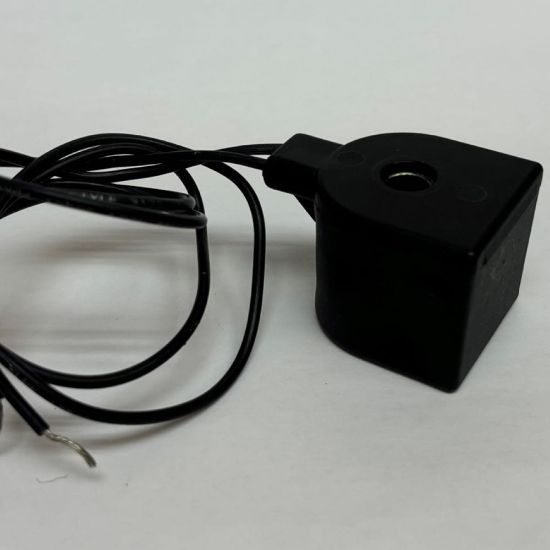

Parker L322C1 - Chart 8 Solenoid Coils

Solenoid coil kits for use on pressure vessels with "Coil Reference 8" / "Chart 8" compatiblity listed in FCD General Purpose Catalog

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. L322C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Insulation Class	Class H	Division	Fluid Control Division
Coil Type	18" Leads	Power Consumption	22 W
Ingress Protection Rating	NEMA 4,4X	Specifications Met	cURus Recognized Component; CE - Low Voltage, EMC
Input Voltage	12.0 VDC	Compatible Valve	For Chart 8 Compatible Pressure Vessels
Coil Type	1/2" NPT Conduit w/ 72" Leads	Specifications Met	cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC
Compatible Valve	For Chart 8 Compatible Pressure Vessels	Input Voltage	24.0
Power Consumption	22	Ingress Protection Rating	cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A
Insulation Class	Class H

Product resources

Literature and Reference Materials

Tube Seal (PDF)
