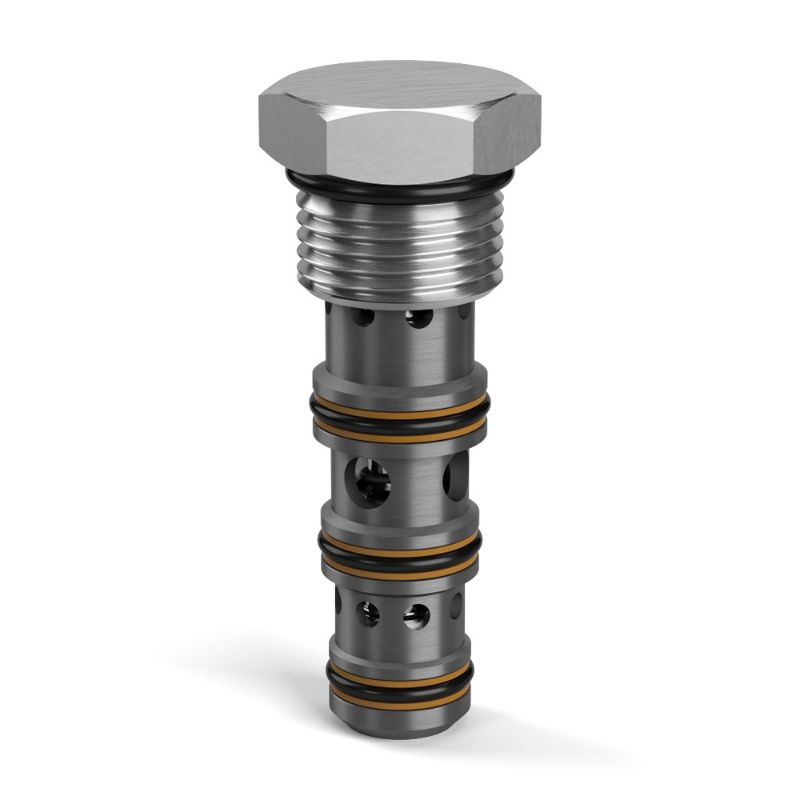

Parker L04A3-15-15N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. L04A3-15-15N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Installation Torque	50 Nm	Flow Rate	16 Gal/min
Valve Material	All parts steel. All operating parts hardened steel	Function	Flow Divider/Combiner
Ratio	50/50	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Actuation Type	Interlocking Spools	Seal Material	Nitrile
Maximum Operating Temperature	+121 °C	Connection Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Operating Temperature	-30 to +250 °F
Cavity Size	C10-4	Operation Type	Automatic
Maximum Flow Rate	16 Gal/min	Maximum Inlet Pressure Rating	420 bar
Division	Mobile Hydraulic Systems Division Europe	Configuration	n/a
Maximum Operating Pressure	420 bar	Weight	0.12 kg
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Standard Flow Rate Setting	10-30 L/min
Flow Rate Accuracy	10%	Ratio	50/50
Seal Material	Nitrile	Standard Flow Rate Setting	2.6-7.9 GAL/MIN, 10-30 L/MIN
Flow Rate	16 GAL/MIN, 60 L/MIN
