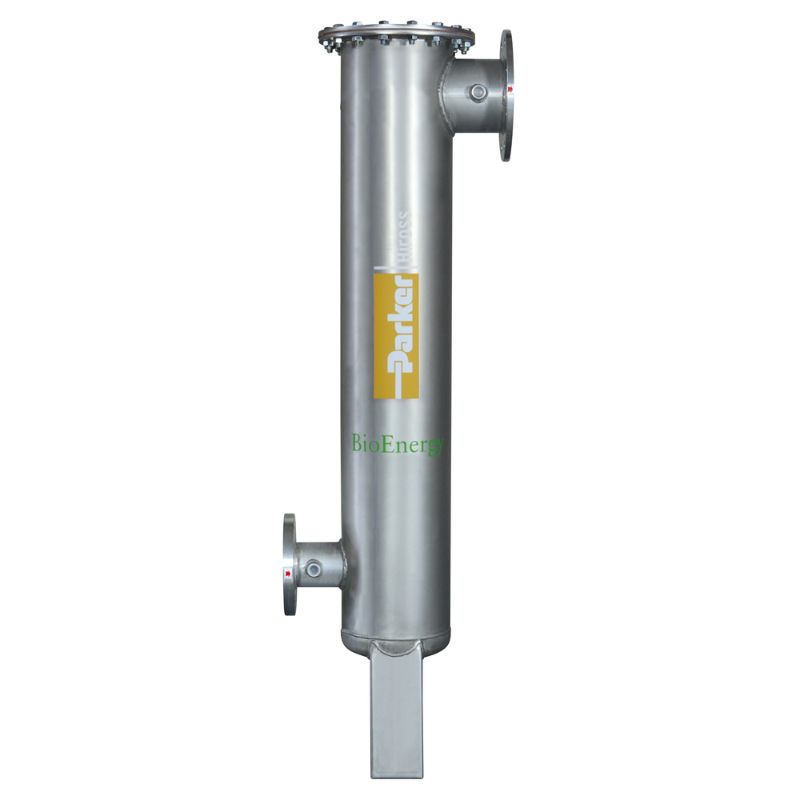

Parker FFB720-316 - Hyperfilter BioEnergy Natural Gas Filter

High efficiency stainless steel filters for the treatment of biogas from anaerobic digesters and landfills for flow rates of up to 1110m³/h and a maximum operating pressure of 0.5 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFB720-316

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	EL-FFB720-110	Maximum Flow Rate	423.78 CFM
Number of Elements	1	Division	Gas Separation and Filtration Division EMEA
Minimum Operating Temperature	14 °F	Maximum Operating Temperature	212 °F
Specifications Met	not necessary due to low pressure	Outlet Port Size	DN200
Application	Filtration of biogas	Width	625 mm
Height	1838 mm	Connection Type	Flanged DIN EN 1092-1
Brand	Hiross	Micron Rating	20 MICRON
Weight	99 kg	Maximum Operating Pressure	0.5 barg
Port Connection Inlet	DN125	Materials of Construction	Housing: Galvanized steel AISI316; Seals: Neopren
Maximum Flow Rate (m³/h)	720
