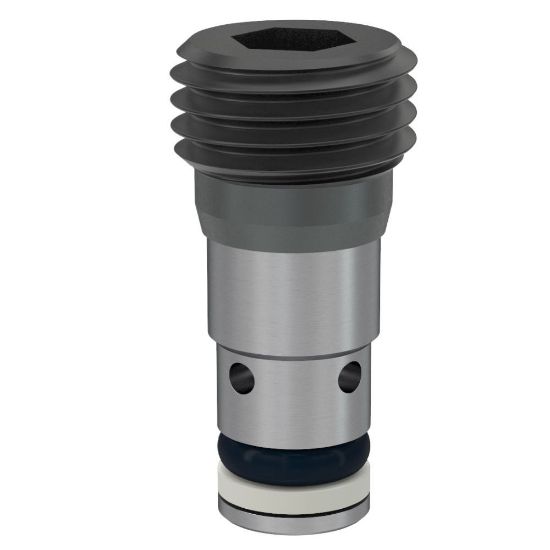

Parker KSWA3N - Insert Shuttle Valves

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. KSWA3N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Material	All parts steel. All operating parts hardened steel	Division	Hydraulic Cartridge Systems Division
Maximum Operating Temperature	+121 °C	Body Material	n/a
Installation Torque	10 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Seal Material	Nitrile
Actuation Type	Pressure Sensing	Operating Temperature	-30 to +250 °F
Configuration	Insert	Minimum Operating Temperature	-34 °C
Maximum Flow Rate	2.5 Gal/min	Operation Type	Automatic
Weight	0.01 kg	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	CAVSW-3	Maximum Operating Pressure	420 bar
Flow Rate	2.5 Gal/min	Leak Rate	10 @ 5000 PSI (350 BAR) drops/min
Function	Shuttle	Maximum Inlet Pressure Rating	6000 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	2.5 GAL/MIN, 9.5 L/MIN
Seal Material	Nitrile
