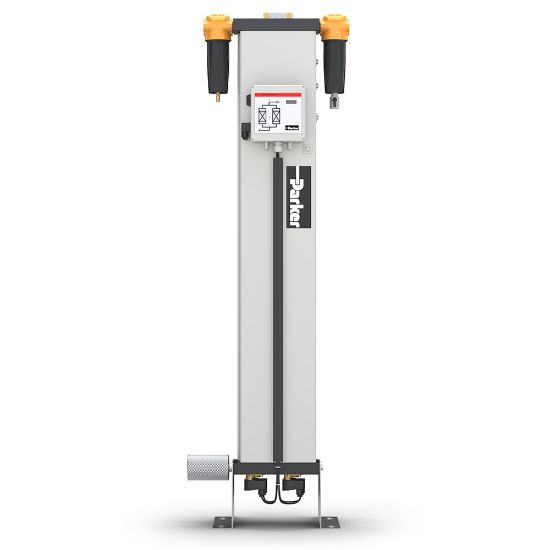

Parker K4/16D3-G230M - K-MT 1-8 Series Heatless Compressed Air Dryer

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K4/16D3-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	PED 2014/68/EU Fluid Group II	Noise Level	65 to 86 dBA
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Brand	Parker
Pressure Dew Point	Standard: -40°C (-40°F)<br/>	Division	Gas Separation and Filtration Division EMEA
Width	345.0 mm	Product Type	Compressed Air Dryer
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Operating Pressure	58 to 232 psig
Height	42 inch	Product Series	K-MT 1-8
Operating Temperature	5 to 50 °C	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental
Ambient Temperature	122.0	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Connection Type	BSPP
Depth	8 inch	Product Style	Heatless
Flow Rate	35 m³/h @7 barg (21 cfm @102 psig)	Electrical Requirements	230V 1ph 50/60Hz
Optional Accessories	None	Port Size	¼ inch
