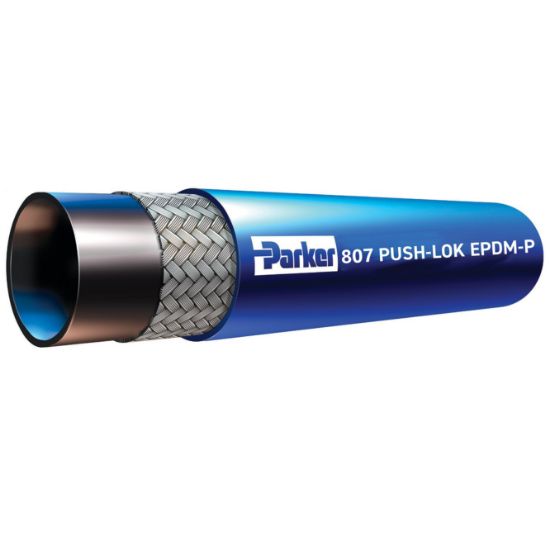

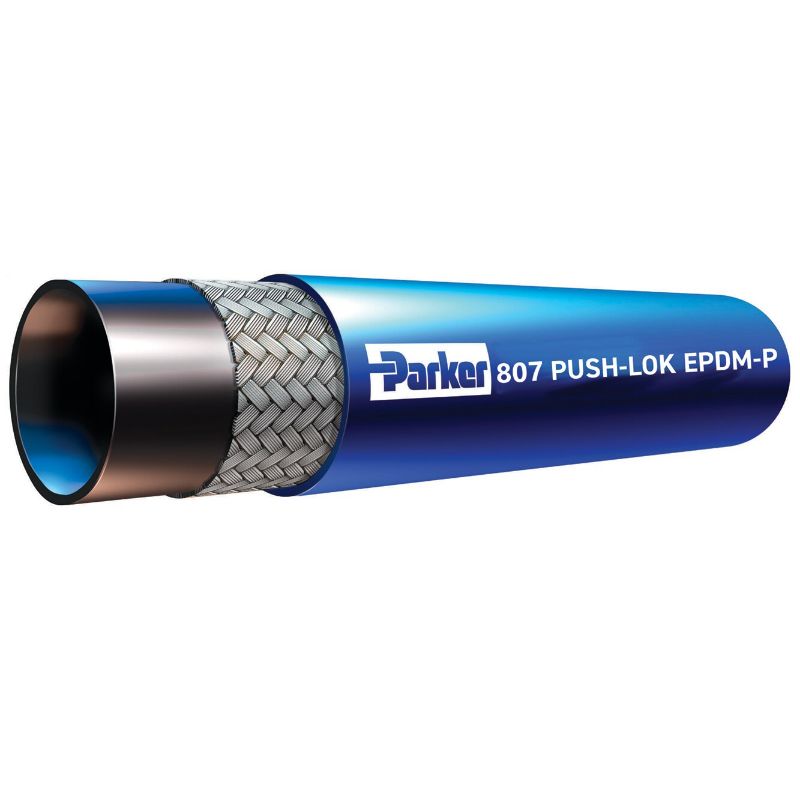

Parker 807-12-BLU-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 807-12-BLU-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hose Outside Diameter	23.1 mm	Compatible Fitting	82 Series
Hose Inner Tube Material	Black EPDM peroxide cured	Cover Material	Blue synthetic rubber smooth finish
Hose Reinforcement Material	One fiber braid	Weight	0.20 lb-ft
Specifications Met	UL94 V-0 Flame resistance rating	Division	Hose Products Division
Minimum Bend Radius	4.5 inch	Maximum Operating Temperature	212 °F
Media	air, water (including PCW), coolant solutions	Maximum Operating Pressure	1.03 MPa
Application	Media Transfer	Minimum Operating Temperature	-40 °F
