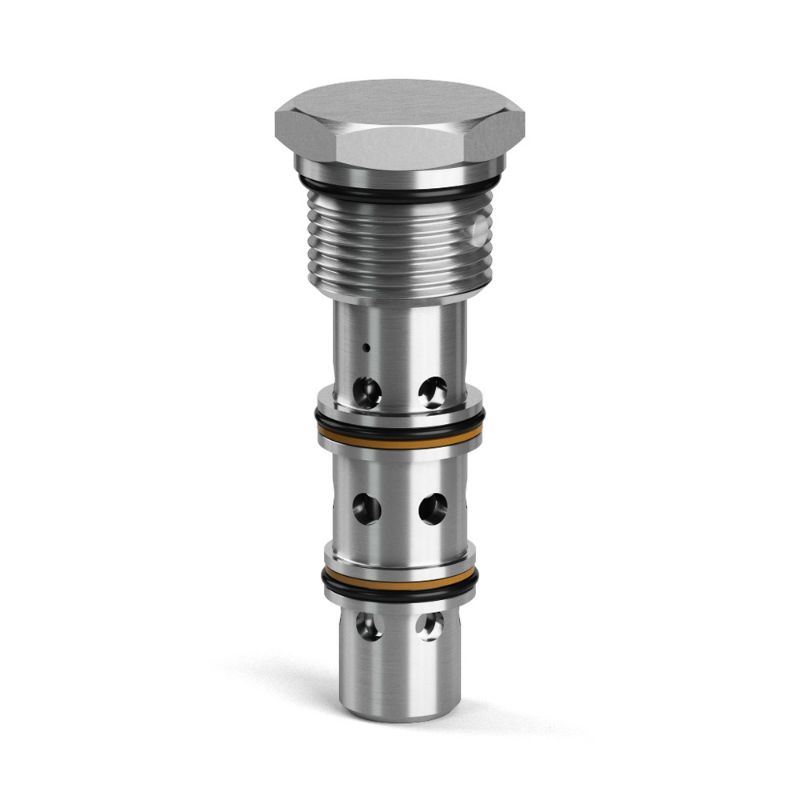

Parker K3A125-1.0N - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K3A125-1.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operation Type	Spring Centered, All Parts Closed	Switching Pressure	15 psi
Division	Mobile Hydraulic Systems Division Europe	Flow Rate	46 Gal/min
Function	Shuttle	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	3-way Spool Type	Maximum Operating Pressure	5000 psi
Leak Rate	300 @ 1450 PSI (100 BAR) cm3/min	Standard Flow Rate Setting	105 L/min
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	5000 psi
Maximum Flow Rate	46 Gal/min	Body Material	n/a
Cavity Size	3U	Seal Material	Nitrile
Actuation Type	Pressure Sensing	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.7 lb
Minimum Operating Temperature	-34 °C	Operating Temperature	-30 to +250 °F
Maximum Operating Temperature	+250 °F	Installation Torque	85 Nm
Seal Material	Nitrile	Switching Pressure	15 PSI, 1 BAR
Flow Rate	46 GAL/MIN, 175 L/MIN
