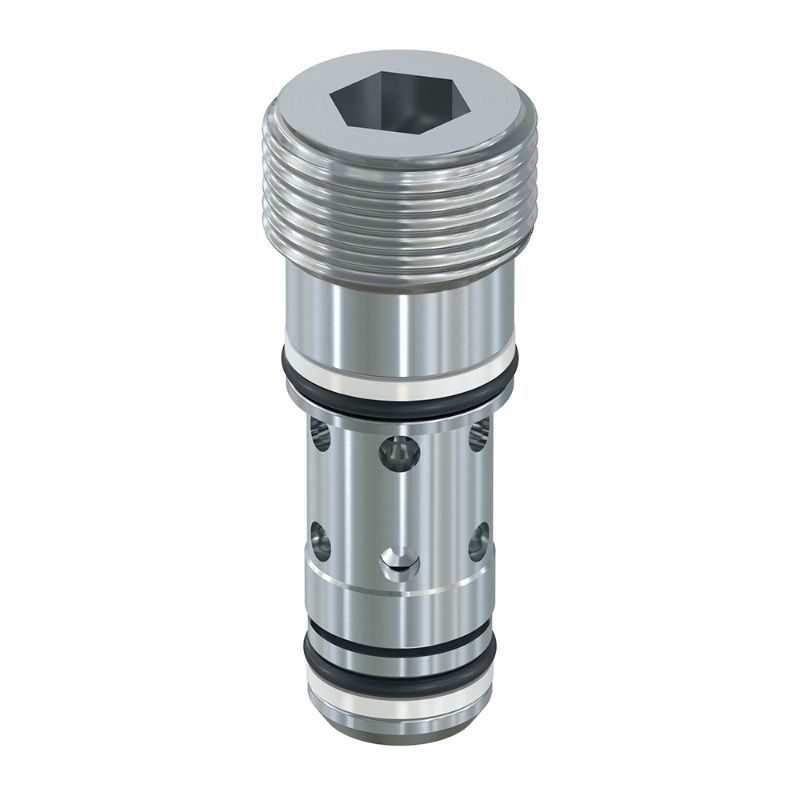

Picture of Parker K2A005V - Insert Shuttle Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker K2A005V - Insert Shuttle Valves

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. K2A005V
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMinimum Operating Temperature-26 °C
FunctionShuttleFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate38 L/minMaximum Operating Pressure5000 psi
Valve MaterialAll parts steel. All operating parts hardened steelMaximum Inlet Pressure Rating5000 psi
Body Materialn/aDivisionHydraulic Cartridge Systems Division
Operating Temperature-26 to +204 °CActuation TypePressure Sensing
Seal MaterialFluorocarbonWeight.02 kg
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
ConfigurationInsertOperation TypeAutomatic
Maximum Operating Temperature+400 °FFlow Rate10 Gal/min
Cavity Size3ZInstallation Torque7 lb-ft
Leak Rate10 @ 5000 PSI (350 BAR) drops/minDivisionMobile Hydraulic Systems Division Europe
Seal MaterialFluorocarbonFlow Rate10 GAL/MIN, 38 L/MIN
