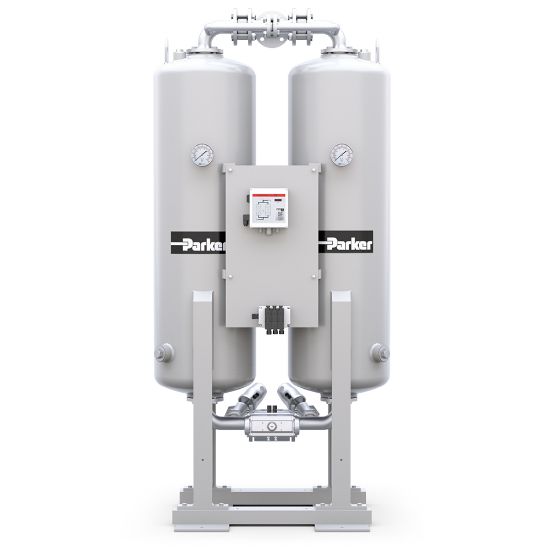

Parker K250/10D1-F230MT - KE-MT Series Large Flow Heatless Compressed Air Dryer

Large flow heatless compressed air dryers with available flow rates up to 6100m³/h @ 7 barg and pressure dew points of -25°C to -70°C, for industrial compressed air treatment applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K250/10D1-F230MT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	1471 CFM at 101 psig, PDP -13°F	Ingress Protection Rating	54
Port Size	DN80	Connection Type	Flanged according to EN1092-1
Minimum Operating Temperature	25 °C	Weight	1075 kg
Specifications Met	PED 97/23/EG Module D+B Category II, others on request	Division	Gas Separation and Filtration Division EMEA
Depth	1040 mm	Compatible After Filter	OIL-X AOPX060K
Compatible Prefilter	OIL-X AOPX060K and AAPX060K	Maximum Operating Temperature	50 °C
Electrical Requirements	230V, 50-60Hz	Maximum Operating Pressure	145 psig
Height	2210 mm	Minimum Ambient Temperature	1.5 °C
Minimum Operating Pressure	5 barg	Brand	Parker
Product Type	Heatless	Controller Type	Multitronic
Maximum Ambient Temperature	50 °C	Width	1530 mm
Pressure Dew Point	-13 to -97 °F	Power Consumption	7.2 VA
Pre-Installed Optional Accessories	Dew Point Sensor	Maximum Flow Rate (m³/h)	2500 @ 7 barg / PDP -25°C
