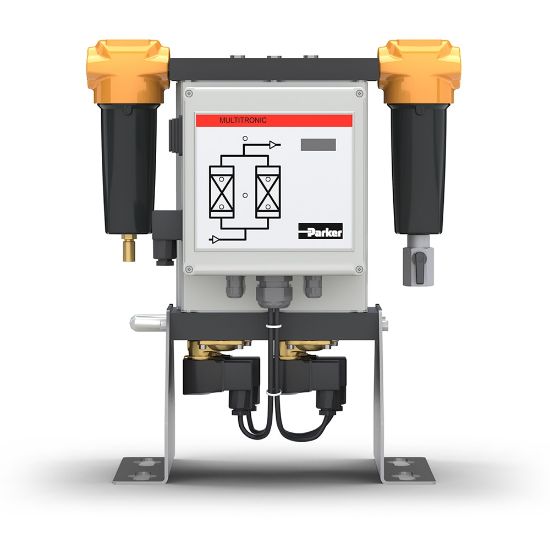

Parker K1/16D3-G230M - K-MT 1-8 Series Heatless Compressed Air Dryer

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K1/16D3-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Depth	8 inch	Product Style	Heatless
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Noise Level	65 to 86 dBA
Specifications Met	PED 2014/68/EU Fluid Group II	Brand	Parker
Height	403.0 mm	Division	Gas Separation and Filtration Division EMEA
Width	345.0 mm	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Operating Temperature	5 to 50 °C
Product Type	Compressed Air Dryer	Operating Pressure	58 to 232 psig
Product Series	K-MT 1-8	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental
Ambient Temperature	122.0	Connection Type	BSPP
Division	Gas Separation and Filtration Division EMEA	Technology	Filtration
Port Size	¼ inch	Electrical Requirements	230V 1ph 50/60Hz
Flow Rate	8 m³/h @7 barg (5 cfm @102 psig)	Optional Accessories	None
